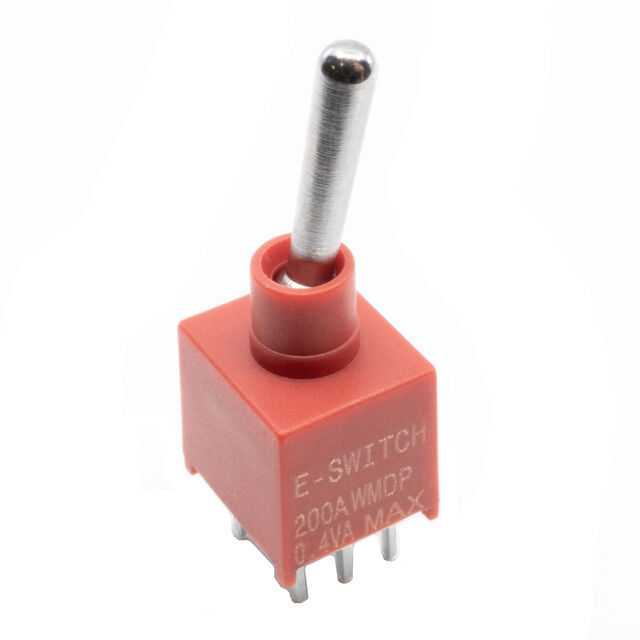

200AWMDP3T1A1M2QE

Active

E-Switch

SWITCH TOGGLE DPDT 3A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Ingress Protection	Illumination	Mounting Type	Features	Actuator Length [x]	Electrical Life	Switch Function	Voltage Rating - DC	Actuator Type	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Current Rating (Amps)	Voltage Rating - AC	Bushing Thread
E-Switch 200AWMDP3T2A1M6RE	PC Pin	IP67 - Dust Tight Waterproof	Non-Illuminated	Through Hole Right Angle	Epoxy Sealed Terminals	6.1 mm	50000 Cycles	On-Off-On	20 V	Standard Round	Brass Chrome Plated	-30 ░C	85 °C	DPDT	0.4 VA	20 V	Unthreaded
E-Switch 200AWMDP3T1A1VS2QE	PC Pin	IP67 - Dust Tight Waterproof	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	10.16 mm	50000 Cycles	On-Off-On	28 V	Standard Round	Brass Chrome Plated	-30 ░C	85 °C	DPDT	3 A	120 V	Unthreaded
E-Switch 200AWMDP3T1A1M2QE	PC Pin	IP67 - Dust Tight Waterproof	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	10.16 mm	50000 Cycles	On-Off-On	28 V	Standard Round	Brass Chrome Plated	-30 ░C	85 °C	DPDT	3 A	120 V	Unthreaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Through Hole

Technical documentation and resources

No documents available
