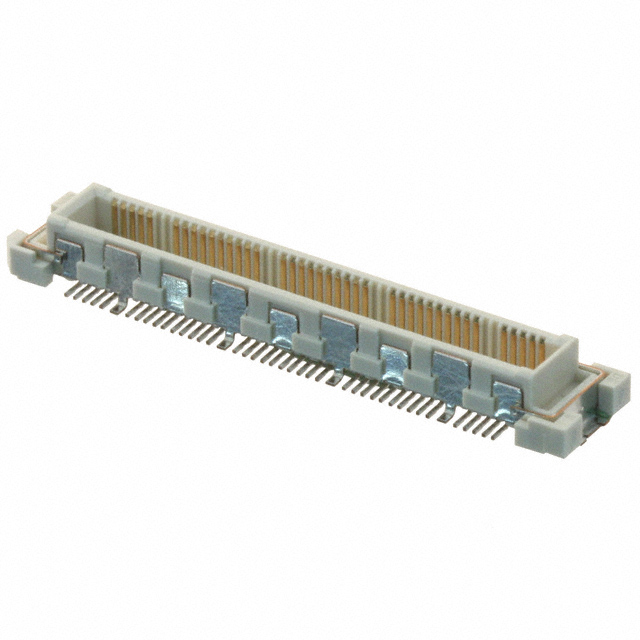

FX11A-80P/8-SV0.5(71)

Active

Hirose Electric USA, Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX11A-80P/8-SV0.5(71) Spec Datasheet

FX11A-80P/8-SV0.5(71)

Active

Hirose Electric USA, Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

DocumentsFX11A-80P/8-SV0.5(71) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX11A-80P/8-SV0.5(71)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide, Solder Retention, Ground Plate
Height Above Board [z]	2.63 mm
Height Above Board [z]	0.103 "
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX11A Series

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Features	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board	Mated Stacking Heights [z]
Hirose Electric USA, Inc. FX11A-80P/8-SV0.5(71)	3 mm	0.5 mm	0.02 in	2	80	Board Guide Ground Plate Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	2.63 mm	0.103 "
Hirose Electric USA, Inc. FX11A-80P-SV(21)	2.5 mm	0.5 mm	0.02 in	2	80	Board Guide Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold			0.084 in	2.13 mm
Hirose Electric USA, Inc. FX11A-80S-SV(21)		0.5 mm	0.02 in	2	80	Board Guide Solder Retention	Surface Mount	Center Strip Contacts Receptacle	3.94 µin	0.1 Ám	Gold			0.083 "	2.1 mm	2.5 mm 3 mm
Hirose Electric USA, Inc. FX11A-100S/10-SV(71)		0.5 mm	0.02 in	2	100	Board Guide Ground Plate Solder Retention	Surface Mount	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Gold			0.083 "	2.1 mm	2.5 mm 3 mm
Hirose Electric USA, Inc. FX11A-100P/10-SV0.5(92)	3 mm	0.5 mm	0.02 in	2	100	Board Guide Ground Plate Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	2.63 mm	0.103 "
Hirose Electric USA, Inc. FX11A-60P/6-SV(91)	2.5 mm	0.5 mm	0.02 in	2	60	Board Guide Ground Plate Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold			0.084 in	2.13 mm
Hirose Electric USA, Inc. FX11A-80P-SV0.5	3 mm	0.5 mm	0.02 in	2	80	Board Guide Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	2.63 mm	0.103 "
Hirose Electric USA, Inc. FX11A-80S/8-SV(91)		0.5 mm	0.02 in	2	80	Board Guide Ground Plate Solder Retention	Surface Mount	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Gold			0.083 "	2.1 mm	2.5 mm 3 mm
Hirose Electric USA, Inc. FX11A-100P-SV0.5(21)	3 mm	0.5 mm	0.02 in	2	100	Board Guide Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	2.63 mm	0.103 "
Hirose Electric USA, Inc. FX11A-100P/10-SV0.5(71)	3 mm	0.5 mm	0.02 in	2	100	Board Guide Ground Plate Solder Retention	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Gold	2.63 mm	0.103 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.15
		10	$ 4.68
		25	$ 4.43
		70	$ 4.33
		140	$ 4.12
		280	$ 3.61
		490	$ 3.50
		980	$ 2.99
		2450	$ 2.78

Description

General part information

FX11A Series

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

FX11A-80P/8-SV0.5(71) Spec

Datasheet
