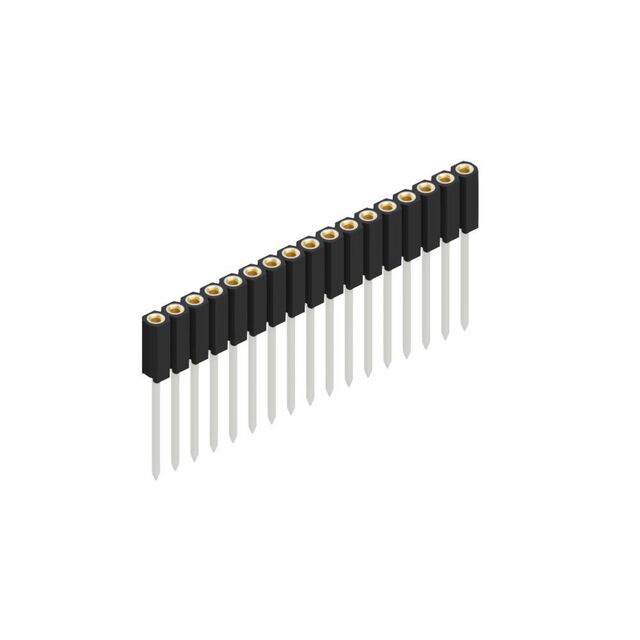

BL 9 17

Active

Fischer Elektronik GmbH & Co. KG

FOR 0.635 MM AND UP TO 0.85 MM

Deep-Dive with AI

Search across all available documentation for this part.

BL 9 17

Active

Fischer Elektronik GmbH & Co. KG

FOR 0.635 MM AND UP TO 0.85 MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BL 9 17

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material	Beryllium Copper
Contact Type	Female Socket
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	17
Number of Rows	1
Operating Temperature [Max]	163 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	150 VDC

- Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Type	Number of Rows	Contact Finish - Post	Contact Material	Mounting Type	Termination	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post [Max]	Contact Finish Thickness - Post [Min]	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Fischer Elektronik GmbH & Co. KG BL 9 17	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	17	Female Socket	1	Tin	Beryllium Copper	Through Hole	Solder	150 VDC	29.5 Áin	0.75 Ám	Gold	Header
Fischer Elektronik GmbH & Co. KG BLY 3 2	-40 °C	163 ░C			UL94 V-0	2	Female Socket	1	Tin	Beryllium Copper	Through Hole	Solder	100 V	10 çin	0.25 çm	Gold	Header	0.079 in	2 mm	2
Fischer Elektronik GmbH & Co. KG BL 5 2	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	2	Female Socket Precision	1	Tin	Beryllium Copper	Through Hole	Solder	150 VDC	29.5 Áin	0.75 Ám	Gold	Header			2	All	0.122 "	3.1 mm	6 µm 236.2 µin	4 µm 157.5 µin	7 mm	0.276 in	3 A
Fischer Elektronik GmbH & Co. KG BL 5 10	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	10	Female Socket	1	Tin	Beryllium Copper	Through Hole	Solder	150 VDC			Gold	Header			10
Fischer Elektronik GmbH & Co. KG BLY 1 8	-40 °C	163 ░C			UL94 V-0	8	Female Socket	1	Tin	Beryllium Copper	Through Hole	Solder	100 V	10 çin	0.25 çm	Gold	Header	0.079 in	2 mm	8
Fischer Elektronik GmbH & Co. KG BL 7 24	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	24	Female Socket	1	Tin	Beryllium Copper	Through Hole	Solder	150 VDC	29.5 Áin	0.75 Ám	Gold	Header			24
Fischer Elektronik GmbH & Co. KG BL 8 12	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	12	Female Socket	2	Tin	Beryllium Copper	Through Hole	Solder	150 VDC	29.5 Áin	0.75 Ám	Gold	Header			12									2.54 mm	0.1 in
Fischer Elektronik GmbH & Co. KG BL 8 4	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	4	Female Socket	2	Tin	Beryllium Copper	Through Hole	Solder	150 VDC	29.5 Áin	0.75 Ám	Gold	Header			4									2.54 mm	0.1 in
Fischer Elektronik GmbH & Co. KG BL 7 8	-40 °C	163 ░C	0.1 in	2.54 mm	UL94 V-0	8	Female Socket	1	Tin	Beryllium Copper	Through Hole	Solder	150 VDC	29.5 Áin	0.75 Ám	Gold	Header			8
Fischer Elektronik GmbH & Co. KG BL 3 8 G	-40 °C	200 °C	0.1 in	2.54 mm	UL94 V-0	8	Female Socket	1			Through Hole	Solder	125 VAC				Header			8											7.87 Áin	0.2 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 3.90

Description

General part information

- Series

17 Position Header Connector 0.100" (2.54mm) Through Hole Gold
