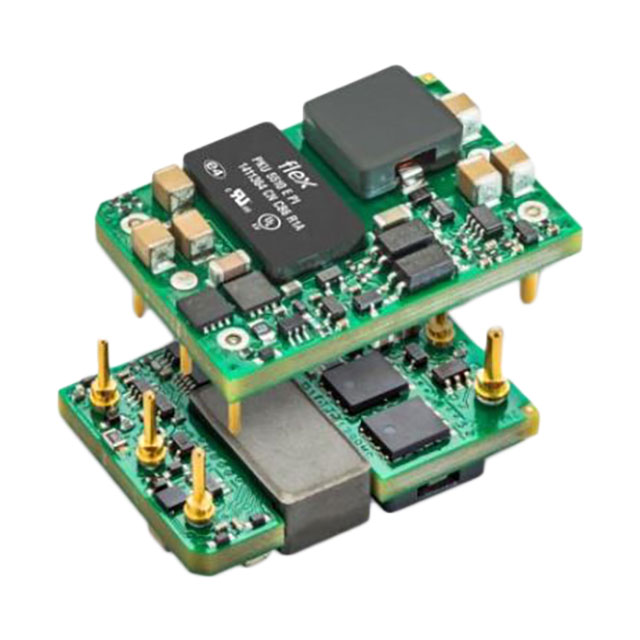

PKU5511ESI

Active

Flex Power Modules

DC DC CONVERTER 5V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKU5511ESI

Active

Flex Power Modules

DC DC CONVERTER 5V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKU5511ESI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	10 A
Efficiency	92 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	50 W
Size / Dimension [x]	33 mm
Size / Dimension [x]	1.3 "
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	9.4 mm
Size / Dimension [z]	0.37 in
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

PKU551 Series

Part	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Package / Case	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Control Features	Supplier Device Package	Type	Mounting Type
Flex Power Modules PKU5515SPI	1	90 %	3.4 A	ITE (Commercial)	18 V	CB CSA IEC TUV UL	75 V	15 V	51 W	Sixteenth Brick	Adjustable Output Remote On/Off Remote Sense	-40 °C	100 °C	2250 VDC	25 mm	0.98 in	0.41 "	1.39 in	35.3 mm	10.4 mm	62368-1	Active Low Enable	Sixteenth Brick	Isolated Module	Through Hole
Flex Power Modules PKU5511SPI	1	90 %	10 A	ITE (Commercial)	18 V	CB CSA IEC TUV UL	75 V	5 V	50 W	Sixteenth Brick	Adjustable Output Remote On/Off Remote Sense	-40 °C	100 °C	2250 VDC	25 mm	0.98 in	0.41 "	1.39 in	35.3 mm	10.4 mm	62368-1	Active Low Enable	Sixteenth Brick	Isolated Module	Through Hole
Flex Power Modules PKU5510ESI	1	92 %	15 A	ITE (Commercial)	18 V	CB CSA IEC TUV UL	75 V	3.3 V	50 W	Sixteenth Brick	Adjustable Output Remote On/Off	-40 °C	105 C	2250 VDC	22.9 mm	0.9 "	0.37 in	1.3 "	33 mm	9.4 mm	62368-1	Active Low Enable	Sixteenth Brick	Isolated Module	Surface Mount
Flex Power Modules PKU5513SPI	1	90 %	4.2 A	ITE (Commercial)	18 V	CB CSA IEC TUV UL	75 V	12 V	50 W	Sixteenth Brick	Adjustable Output Remote On/Off Remote Sense	-40 °C	100 °C	2250 VDC	25 mm	0.98 in	0.41 "	1.39 in	35.3 mm	10.4 mm	62368-1	Active Low Enable	Sixteenth Brick	Isolated Module	Through Hole
Flex Power Modules PKU5511ESI	1	92 %	10 A	ITE (Commercial)	18 V	CB CSA IEC TUV UL	75 V	5 V	50 W	Sixteenth Brick	Adjustable Output Remote On/Off	-40 °C	105 C	2250 VDC	22.9 mm	0.9 "	0.37 in	1.3 "	33 mm	9.4 mm	62368-1	Active Low Enable	Sixteenth Brick	Isolated Module	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 29.55
		5	$ 27.86
		10	$ 27.16
		25	$ 26.27
		40	$ 25.82
		80	$ 25.17
		230	$ 24.21

Description

General part information

PKU551 Series

Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input

Documents

Technical documentation and resources
