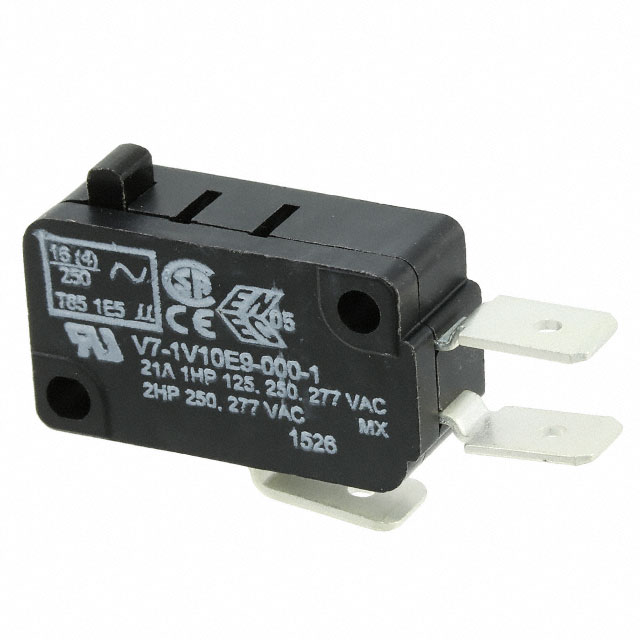

V7-1V10E9-000-1
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 21A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-1V10E9-000-1
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 21A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-1V10E9-000-1 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 21 A |
| Differential Travel | 0.25 mm |
| Differential Travel | 0.01 in |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Position | 0.578 in |
| Operating Position | 14.68 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.27 mm |
| Overtravel | 0.05 in |
| Pretravel | 0.047 in |
| Pretravel | 1.2 mm |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.85 | |
| 10 | $ 4.85 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.25 | |||
| 100 | $ 4.20 | |||
Description
General part information
V7-1V1 Series
Switch SPDT Chassis Mount
