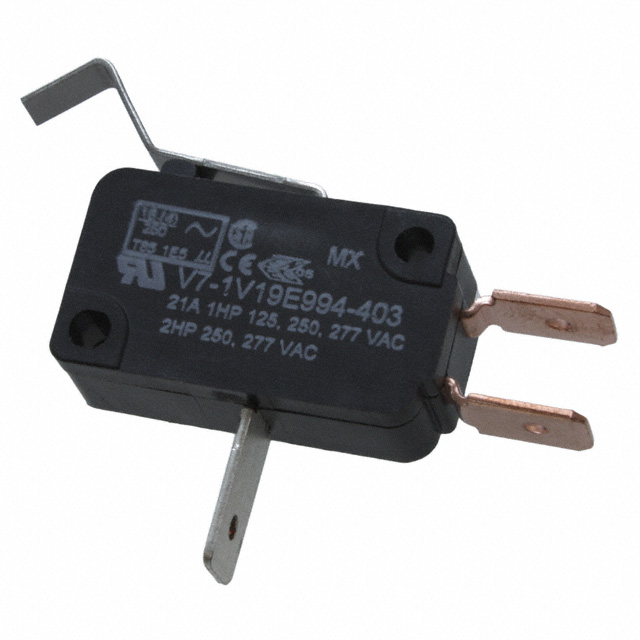

V7-1V19E994-403

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 21A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 21A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Position	Operating Position	Current Rating (Amps)	Switch Function	Overtravel	Overtravel	Pretravel	Pretravel	Mechanical Life	Circuit	Mounting Type	Termination Style	Operating Force	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Voltage Rating - AC	Electrical Life	Release Force
Honeywell Sensing and Productivity Solutions V7-1V19E9-000-3	0.579 in	14.7 mm	21 A	On-Mom	1.27 mm	0.05 in	0.047 in	1.2 mm	10000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.250" (6.3mm)	175 gf	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	125 V
Honeywell Sensing and Productivity Solutions V7-1V10E9-000-2
Honeywell Sensing and Productivity Solutions V7-1V19E9	0.579 in	14.7 mm	21 A	On-Mom	1.27 mm	0.05 in	0.047 in	1.2 mm	10000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.250" (6.3mm)	175 gf	Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	125 V	100000 Cycles	20 gf
Honeywell Sensing and Productivity Solutions V7-1V19E994-403			21 A	On-Mom	1.45 mm	0.057 in	0.1 in	2.5 mm	10000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.250" (6.3mm)	118 gf	Formed Lever	85 °C	-40 °C	0.56 mm	0.022 in	125 V	100000 Cycles	8 gf
Honeywell Sensing and Productivity Solutions V7-1V10E9-002-1
Honeywell Sensing and Productivity Solutions V7-1V10E9-000-1	0.578 in	14.68 mm	21 A	On-Mom	1.27 mm	0.05 in	0.047 in	1.2 mm	10000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.250" (6.3mm)		Round (Pin Plunger)	85 °C	-40 °C	0.25 mm	0.01 in	125 V	100000 Cycles	20 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
