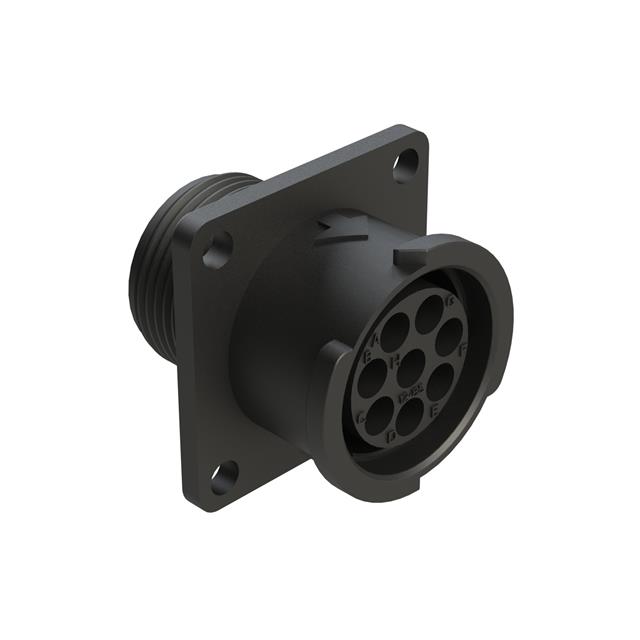

FLS012N8S03
ActiveAmphenol Sine Systems Corp
8 POSITION SQUARE FLANGE RECEPTA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLS012N8S03
ActiveAmphenol Sine Systems Corp
8 POSITION SQUARE FLANGE RECEPTA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLS012N8S03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP69K, IP68, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 12-8 |
| Shielding | Unshielded |
| Type | For Female Sockets |
FLS012N Series
| Part | Note | Contact Size | Contact Type | Orientation | Housing Color | Material Flammability Rating | Connector Type | Ingress Protection | Primary Material | Shielding | Type | Shell Size - Insert | Mounting Feature | Fastening Type | Contact Shape | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Contacts Not Included | 16 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Female Sockets | 12-3 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | |||
Amphenol Sine Systems Corp | Contacts Not Included | 16 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Male Pins | 12-8 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | 8 | ||
Amphenol Sine Systems Corp | Contacts Not Included | 16 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Female Sockets | 12-3 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | |||
Amphenol Sine Systems Corp | Contacts Not Included | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Male Pins | 12-4 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | 4 | 12 (2) 20 (2) | ||
Amphenol Sine Systems Corp | Contacts Not Included | 20 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Female Sockets | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | 10 | Cap (Cover) | ||
Amphenol Sine Systems Corp | Contacts Not Included | 16 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Male Pins | 12-3 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | |||
Amphenol Sine Systems Corp | Contacts Not Included | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Male Pins | 12-4 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | 4 | 12 (2) 20 (2) | Cap (Cover) | |
Amphenol Sine Systems Corp | Contacts Not Included | 16 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Female Sockets | 12-4 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | 4 | ||
Amphenol Sine Systems Corp | Contacts Not Included | 16 | Crimp | N | Black | UL94 V-0 | Receptacle Housing | IP67 IP68 IP69K | Plastic | Unshielded | For Female Sockets | 12-8 | Flange | Bayonet Lock | Circular | Thermoplastic | 125 °C | -40 °C | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.73 | |
| 10 | $ 6.99 | |||
| 25 | $ 6.60 | |||
| 50 | $ 6.44 | |||
| 100 | $ 6.12 | |||
| 250 | $ 5.48 | |||
| 500 | $ 5.16 | |||
| 1000 | $ 4.51 | |||
Description
General part information
FLS012N Series
8 Position Circular Connector Receptacle Housing Panel Mount
