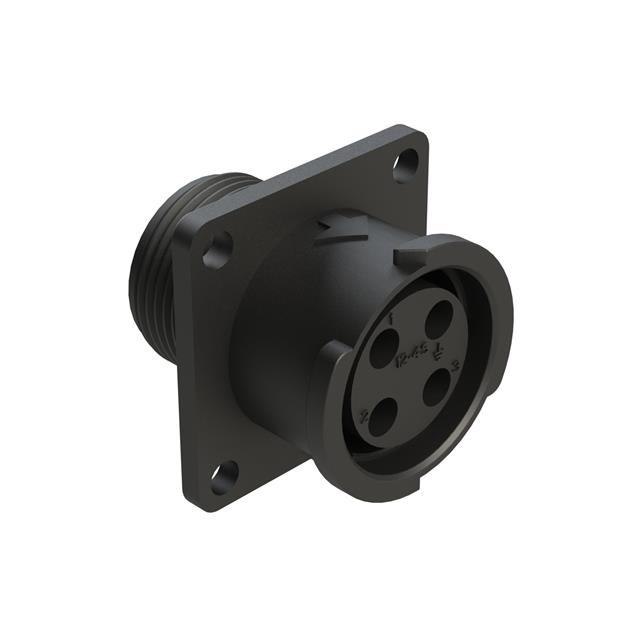

FLS012N4S03

Active

Amphenol Sine Systems Corp

4 POSITION SQUARE FLANGE RECEPTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLS012N4S03

Active

Amphenol Sine Systems Corp

4 POSITION SQUARE FLANGE RECEPTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLS012N4S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	12-4
Shielding	Unshielded
Type	For Female Sockets

FLS012N Series

Part	Note	Contact Size	Contact Type	Orientation	Housing Color	Material Flammability Rating	Connector Type	Ingress Protection	Primary Material	Shielding	Type	Shell Size - Insert	Mounting Feature	Fastening Type	Contact Shape	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Size	Features
Amphenol Sine Systems Corp FLS012N3S03-PM	Contacts Not Included	16	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Female Sockets	12-3	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C
Amphenol Sine Systems Corp FLS012N8P03	Contacts Not Included	16	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Male Pins	12-8	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C	8
Amphenol Sine Systems Corp FLS012N3S03	Contacts Not Included	16	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Female Sockets	12-3	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C
Amphenol Sine Systems Corp FLS012N2P03-PM	Contacts Not Included		Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Male Pins	12-4	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C	4	12 (2) 20 (2)
Amphenol Sine Systems Corp FLS012N10SHEC03	Contacts Not Included	20	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Female Sockets		Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C	10		Cap (Cover)
Amphenol Sine Systems Corp FLS012N3P03	Contacts Not Included	16	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Male Pins	12-3	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C
Amphenol Sine Systems Corp FLS012N2PHEC03	Contacts Not Included		Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Male Pins	12-4	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C	4	12 (2) 20 (2)	Cap (Cover)
Amphenol Sine Systems Corp FLS012N4S03	Contacts Not Included	16	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Female Sockets	12-4	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C	4
Amphenol Sine Systems Corp FLS012N8S03	Contacts Not Included	16	Crimp	N	Black	UL94 V-0	Receptacle Housing	IP67 IP68 IP69K	Plastic	Unshielded	For Female Sockets	12-8	Flange	Bayonet Lock	Circular	Thermoplastic	125 °C	-40 °C	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 5.55

Description

General part information

FLS012N Series

4 Position Circular Connector Receptacle Housing Panel Mount
