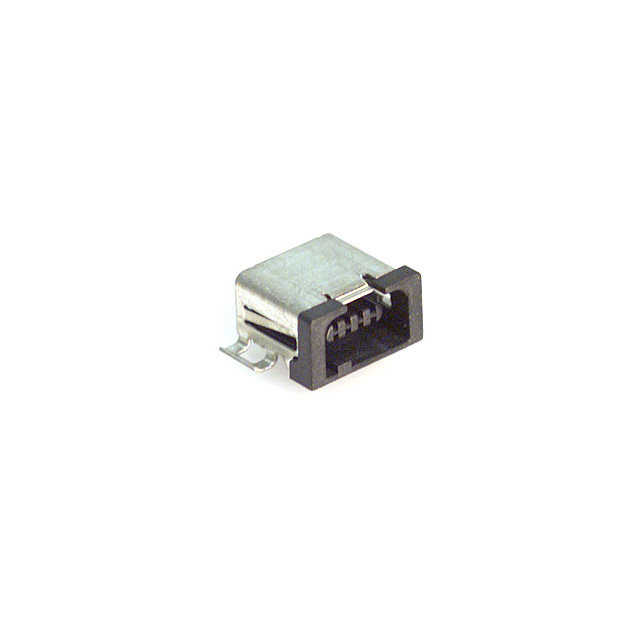

MQ172X-4PA(66)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 4P 0.031 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MQ172X-4PA(66)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 4P 0.031 GOLD SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MQ172X-4PA(66)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Contact Type	Center Strip Contact
Current Rating (Amps)	2 A, 0.5 A, 3 A
Fastening Type	Friction Lock
Features	Board Guide, Shielded, Solder Retention
Insulation Color	Black
Insulation Height	0.154 in
Insulation Height	3.9 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC, 40 VAC

MQ172X Series

Part	Number of Rows	Termination	Contact Material	Material Flammability Rating	Connector Type	Insulation Material	Features	Contact Finish - Mating	Contact Type	Mounting Type	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Applications	Number of Positions Loaded	Current Rating (Amps)	Cable Termination	Color	Wire Type	Contact Finish	Contact Finish - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. MQ172X-4PA(55)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A
Hirose Electric USA, Inc. MQ172X-4SA-CV(31)
Hirose Electric USA, Inc. MQ172X-4SA-CV(30)	1				Plug		Shielded		Male Pin	Free Hanging (In-Line)									4								Solder	Black	Discrete	Gold
Hirose Electric USA, Inc. MQ172X-4PA(30)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A					Gold	Flash
Hirose Electric USA, Inc. MQ172X-4PA(11)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A
Hirose Electric USA, Inc. MQ172X-4PA(66)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A
