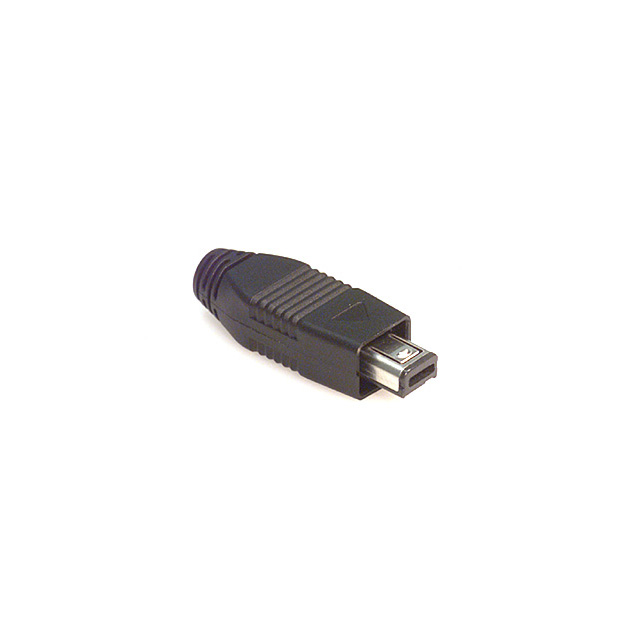

MQ172X-4SA-CV(30)

Active

Hirose Electric USA, Inc.

CONN PLUG 4POS SOLDER GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MQ172X-4SA-CV(30)

Active

Hirose Electric USA, Inc.

CONN PLUG 4POS SOLDER GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MQ172X-4SA-CV(30)

Cable Termination	Solder
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Type	Male Pin
Features	Shielded
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Wire Type	Discrete

MQ172X Series

Part	Number of Rows	Termination	Contact Material	Material Flammability Rating	Connector Type	Insulation Material	Features	Contact Finish - Mating	Contact Type	Mounting Type	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Applications	Number of Positions Loaded	Current Rating (Amps)	Cable Termination	Color	Wire Type	Contact Finish	Contact Finish - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. MQ172X-4PA(55)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A
Hirose Electric USA, Inc. MQ172X-4SA-CV(31)
Hirose Electric USA, Inc. MQ172X-4SA-CV(30)	1				Plug		Shielded		Male Pin	Free Hanging (In-Line)									4								Solder	Black	Discrete	Gold
Hirose Electric USA, Inc. MQ172X-4PA(30)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A					Gold	Flash
Hirose Electric USA, Inc. MQ172X-4PA(11)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A
Hirose Electric USA, Inc. MQ172X-4PA(66)	1	Solder	Copper Alloy	UL94 V-0	Receptacle	Nylon Polyamide (PA)	Board Guide Shielded Solder Retention	Gold	Center Strip Contact	Surface Mount Right Angle	Black	Friction Lock	0.031 in	0.8 mm	0.154 in	3.9 mm	0.203 Ám	8 Áin	4	30 VDC 40 VAC	-30 ░C	75 ░C	Board to Cable/Wire	General Purpose Telecommunications	All	0.5 A 2 A 3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.05
		10	$ 2.33
		25	$ 2.10
		40	$ 1.99
		80	$ 1.84
		230	$ 1.65
		440	$ 1.54
		945	$ 1.42
		2400	$ 1.30

Description

General part information

MQ172X Series

4 Position Rectangular Plug Connector Solder Gold
