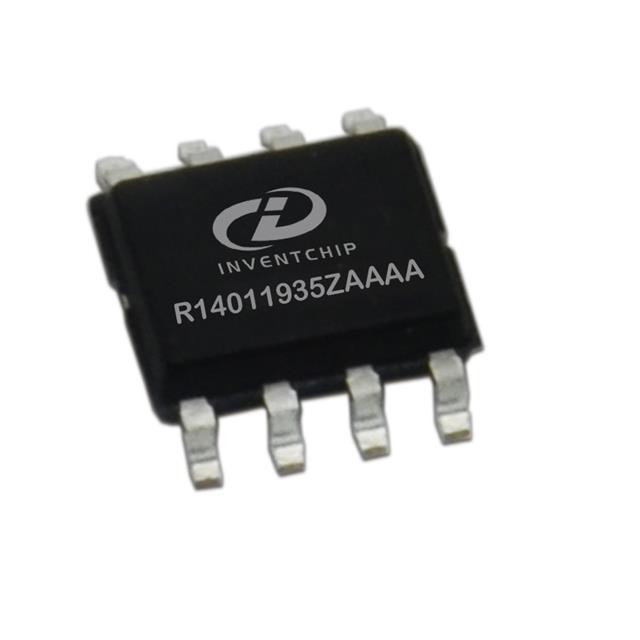

IVCR1401DPR
ActiveInventchip
SIC MOSFET AND IGBT DRIVER, 4A,
Deep-Dive with AI
Search across all available documentation for this part.
IVCR1401DPR
ActiveInventchip
SIC MOSFET AND IGBT DRIVER, 4A,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IVCR1401DPR |
|---|---|
| Channel Type | Single |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Current - Peak Output (Source, Sink) [custom] | 4 A |
| Driven Configuration | Low-Side |
| Input Type | Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Rise / Fall Time (Typ) [custom] | 13 ns |
| Rise / Fall Time (Typ) [custom] | 13 ns |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Supply [Max] | 25 V |
| Voltage - Supply [Min] | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.64 | |
| 10 | $ 2.39 | |||
| 25 | $ 2.06 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.51 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.31 | |||
| Digi-Reel® | 1 | $ 3.64 | ||
| 10 | $ 2.39 | |||
| 25 | $ 2.06 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.51 | |||
| 500 | $ 1.40 | |||
| 1000 | $ 1.31 | |||
| Tape & Reel (TR) | 4000 | $ 1.18 | ||
| 8000 | $ 1.13 | |||
Description
General part information
IVCR1401 Series
Low-Side Gate Driver IC Non-Inverting 8-SOIC-EP
Documents
Technical documentation and resources
No documents available
