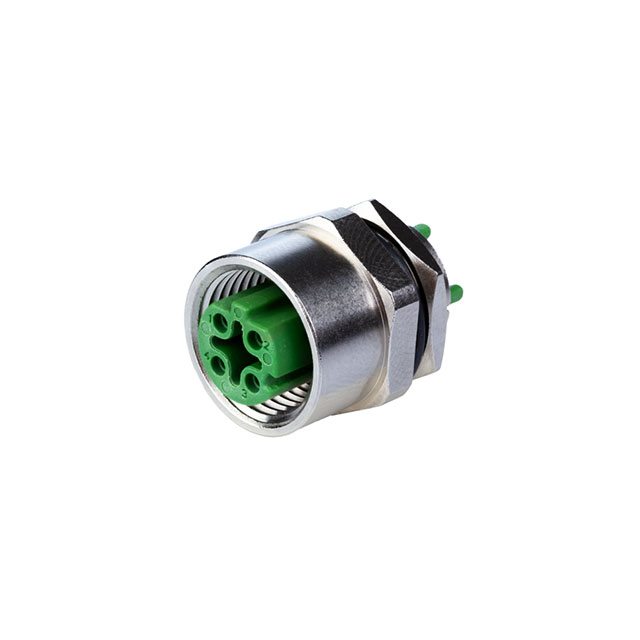

MMT361A115
ActiveMETZ CONNECT USA Inc.
CONN JACK FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMT361A115
ActiveMETZ CONNECT USA Inc.
CONN JACK FMALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMT361A115 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Female Sockets, Jack |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.2 Ám |
| Contact Finish Thickness - Mating | 7.87 Áin |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Metal |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.42 | |
| 10 | $ 27.51 | |||
| 30 | $ 26.32 | |||
| 50 | $ 25.47 | |||
| 100 | $ 24.62 | |||
| 250 | $ 23.27 | |||
Description
General part information
MMT361A Series
4 Position Circular Connector Jack, Female Sockets Solder
