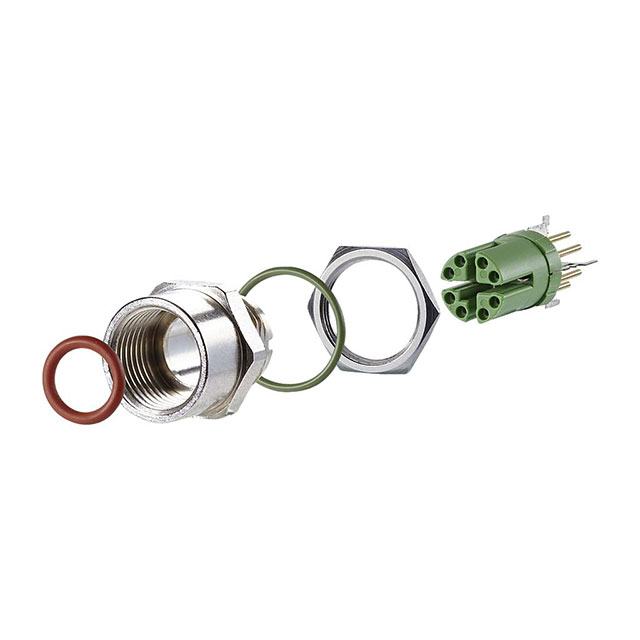

MMT361A315-0001

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Voltage Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ingress Protection	Connector Type	Mounting Type	Termination	Shell Size - Insert	Applications	Orientation	Primary Material	Color	Shell Material	Contact Finish - Mating	Current Rating (Amps)	Material Flammability Rating	Insert Material
METZ CONNECT USA Inc. MMT361A315	Copper Zinc	Shielded	0.203 Ám	8 Áin	Bulkhead - Rear Side Nut	50 VAC 60 VDC	8	85 °C	-40 °C	Board Guide	IP67 - Dust Tight Waterproof	Female Sockets Jack	Panel Mount Through Hole	Solder	M12-8	Railway	X	Metal	Silver	Copper Zinc	Gold
METZ CONNECT USA Inc. MMT361A315-0001	Copper Zinc	Shielded			Bulkhead - Rear Side Nut	48 VDC	8	85 °C	-40 °C		IP67 - Dust Tight Waterproof	Female Sockets Jack	Panel Mount Through Hole	Solder	M12-8	Railway	X	Metal	Silver	Copper Zinc	Gold	0.5 A
METZ CONNECT USA Inc. MMT361A115	Copper Zinc	Shielded	0.2 Ám	7.87 Áin	Bulkhead - Rear Side Nut	250 VDC	4	85 °C	-40 °C	Board Guide	IP67 - Dust Tight Waterproof	Female Sockets Jack	Panel Mount Through Hole	Solder	M12-4	Industrial	D	Metal	Silver	Copper Zinc	Gold	4 A	UL94 V-0	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Jack, Female Sockets Solder

Technical documentation and resources

No documents available
