FGLG.12RD250
ActiveTechflex

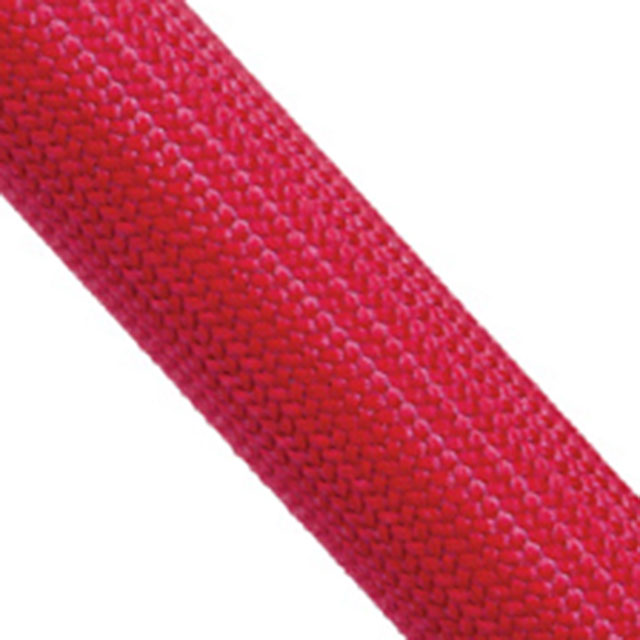

EXPAND SLEEVE 0.085" X 250' RED
Deep-Dive with AI
Search across all available documentation for this part.
FGLG.12RD250
ActiveTechflex
EXPAND SLEEVE 0.085" X 250' RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FGLG.12RD250 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant, Fray Resistant |
| Color | Red |
| Diameter - Inside, Expanded [diameter] | 0.089 in |
| Diameter - Inside, Expanded [diameter] | 2.26 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.085 in |
| Diameter - Inside, Non-Expanded [diameter] | 2.16 mm |
| Features | Clean Cut, Solvent Resistant |
| Heat Protection | Heat Resistant |
| Length [x] | 76.2 m |
| Length [x] | 250 ft |
| Material | Acrylic Coated, Fiberglass, Halogen Free |
| Material Flammability Rating | UL VW-1 |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.15 mm |
| Wall Thickness | 0.006 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 66.26 | |
Description
General part information
FGLG Series
Sleeve X 250' (76.20m) Red
