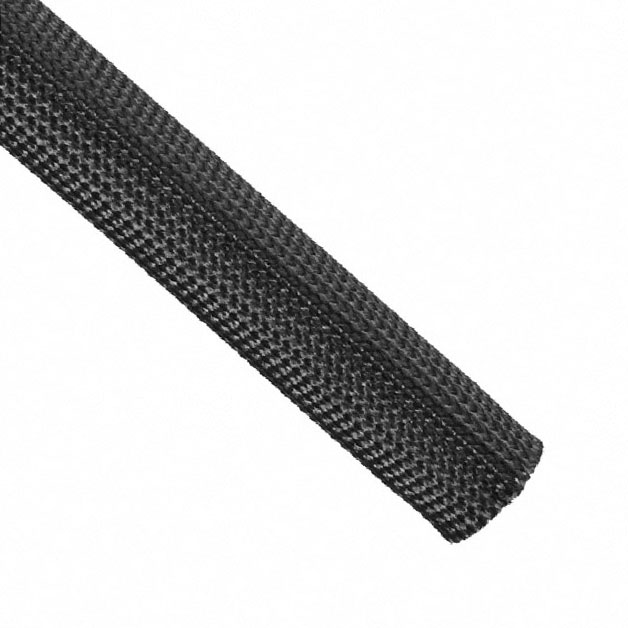

FGLG.00BK100
ActiveTechflex
EXPAND SLEEVE 0.33" X 100' BLK
Deep-Dive with AI
Search across all available documentation for this part.
FGLG.00BK100
ActiveTechflex
EXPAND SLEEVE 0.33" X 100' BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FGLG.00BK100 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant, Fray Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 8.81 mm |
| Diameter - Inside, Expanded [diameter] | 0.347 in |
| Diameter - Inside, Non-Expanded [diameter] | 0.33 in |
| Diameter - Inside, Non-Expanded [diameter] | 8.38 mm |
| Features | Clean Cut, Solvent Resistant |
| Heat Protection | Heat Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Material | Acrylic Coated, Fiberglass, Halogen Free |
| Material Flammability Rating | UL VW-1 |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.01 in |
| Wall Thickness | 0.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 64.06 | |
| 2 | $ 58.91 | |||
| 3 | $ 56.10 | |||
| 5 | $ 52.74 | |||
| 7 | $ 50.64 | |||
| 10 | $ 48.51 | |||
| 25 | $ 43.43 | |||
| 50 | $ 39.94 | |||
| 100 | $ 36.74 | |||
Description
General part information
FGLG Series
Sleeve X 100' (30.48m) Black
Documents
Technical documentation and resources
