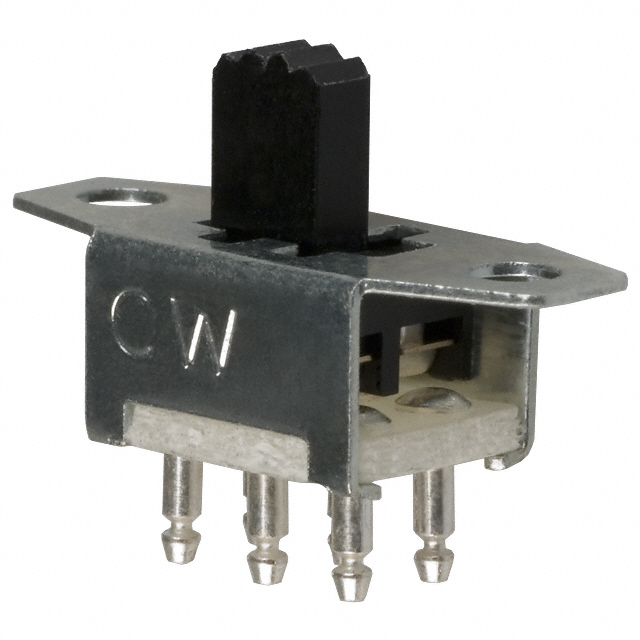

GS-113-0512
ActiveCW Industries
SWITCH SLIDE DPDT 500MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
GS-113-0512
ActiveCW Industries
SWITCH SLIDE DPDT 500MA 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GS-113-0512 |
|---|---|
| Actuator Length [x] | 4.75 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 500 mA |
| Mechanical Life | 10000 Steps |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On |
| Switch Travel | 2.67 mm |
| Termination Style | Press-Fit |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.02 | |
| 10 | $ 3.26 | |||
| 25 | $ 3.00 | |||
| 100 | $ 2.63 | |||
| 250 | $ 2.41 | |||
| 500 | $ 2.26 | |||
| 1000 | $ 2.11 | |||
| 2500 | $ 1.92 | |||
| 5000 | $ 1.81 | |||
Description
General part information
GS-113 Series
Slide Switch DPDT Panel Mount
Documents
Technical documentation and resources
No documents available
