GS-113-0048

Active

CW Industries

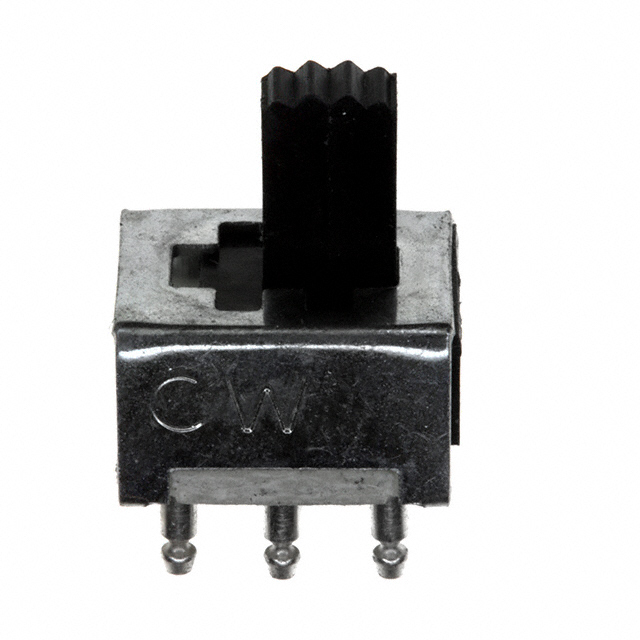

SWITCH SLIDE DPDT

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE DPDT

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Length [x]	Circuit	Contact Finish	Contact Material	Actuator Material	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Switch Travel	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Timing	Current Rating (Amps)	Switch Function	Mechanical Life
CW Industries GS-113-0045	4.75 mm	DPDT	Silver	Copper Alloy	Nylon 6/6 Polyamide (PA66)	PC Pin	125 V	125 VDC	2.67 mm	Standard	104 °C	-10 °C	Through Hole	Not Specified	500 mA	On-On	10000 Steps
CW Industries GS-113-0048		DPDT				PC Pin				Standard			Through Hole			On-On
CW Industries GS-113-0512	4.75 mm	DPDT	Silver	Copper Alloy	Nylon 6/6 Polyamide (PA66)	Press-Fit	125 V	125 VDC	2.67 mm	Standard	104 °C	-10 °C		Not Specified	500 mA	On-On	10000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.15

General part information

Slide Switch DPDT Through Hole

Technical documentation and resources

No documents available
