0191370038
ActiveMolex

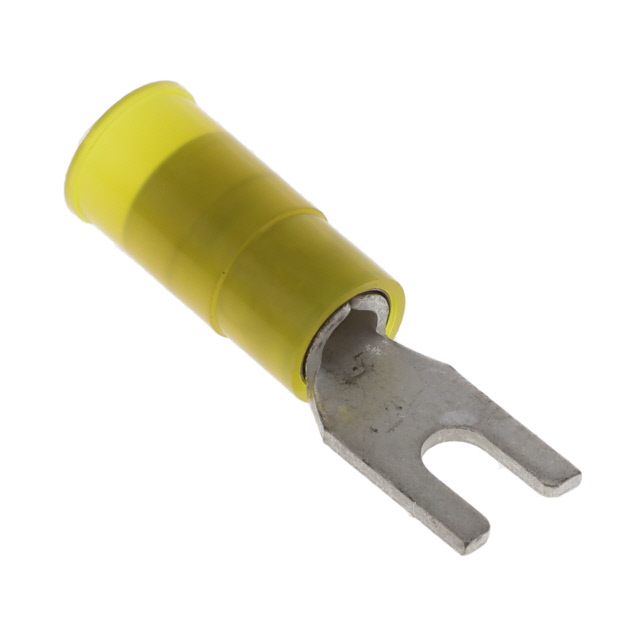

CONN SPADE TERM 10-12AWG #6 YEL
Deep-Dive with AI
Search across all available documentation for this part.
0191370038
ActiveMolex
CONN SPADE TERM 10-12AWG #6 YEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0191370038 |
|---|---|
| Color | Yellow |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Insulation Diameter [diameter] | 5.72 mm |
| Insulation Diameter [diameter] | 0.225 " |
| Length - Overall [x] | 30.58 mm |
| Length - Overall [x] | 1.204 in |
| Length - Ring Center to Termination [x] | 0.305 " |
| Length - Ring Center to Termination [x] | 7.75 mm |
| Length - Termination | 16.99 mm |
| Length - Termination | 0.669 in |
| Material - Insulation | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening [x] | 3.71 mm |
| Tongue Inside Opening [x] | 0.146 in |
| Width - Outer Edges [y] | 8.13 mm |
| Width - Outer Edges [y] | 0.32 in |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.33 | |||
| 1000 | $ 0.28 | |||
Description
General part information
019137 Series
Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG
