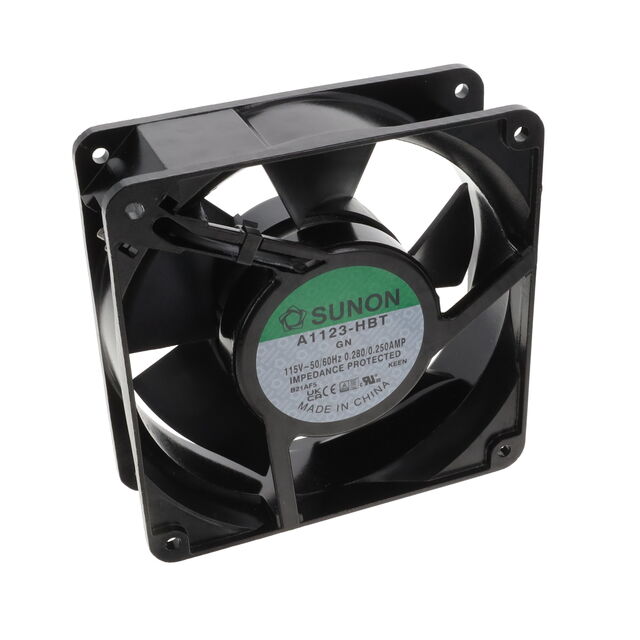

A1123-HBT.GN
ActiveSunon Fans
FAN AXIAL 119.5X38.5MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
A1123-HBT.GN
ActiveSunon Fans
FAN AXIAL 119.5X38.5MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A1123-HBT.GN |
|---|---|
| Air Flow | 3.28 m³/min |
| Air Flow | 117 CFM |
| Approval Agency | TUV, cUR, UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.25 A |
| Fan Type | Tubeaxial |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 50 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 20 W |
| RPM | 3100 RPM |
| Size / Dimension [x] | 119.5 mm |
| Size / Dimension [z] | 119.5 mm |
| Static Pressure | 0.39 in H2O |
| Static Pressure | 97.1 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Voltage Range [Max] | 125 VAC |
| Voltage Range [Min] | 75 VAC |
| Width [y] | 38.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.37 | |
| 10 | $ 25.63 | |||
| 40 | $ 22.42 | |||
| 80 | $ 22.05 | |||
Description
General part information
A1123 Series
Fan Tubeaxial 115VAC Square - 119.5mm L x 119.5mm H Ball 117.0 CFM (3.28m³/min) 2 Terminals
