THM 20-2422

Active

Traco Power

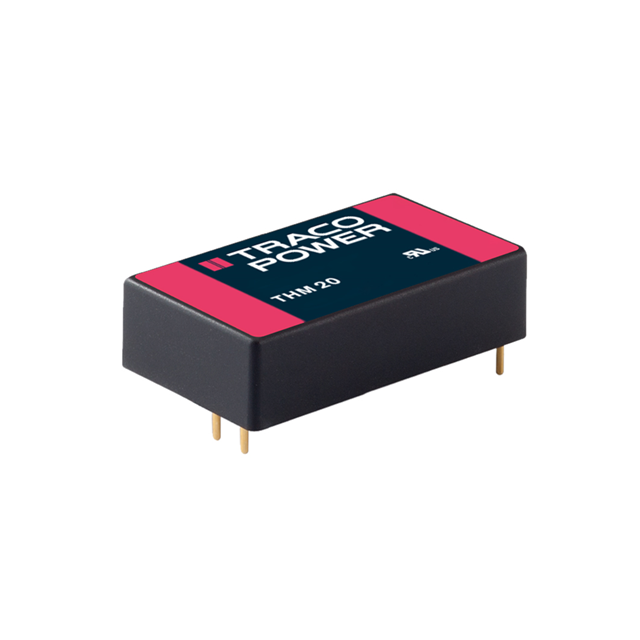

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTHM 20 Certs Datasheet

THM 20-2422

Active

Traco Power

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

DocumentsTHM 20 Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THM 20-2422

Applications	Medical
Current - Output (Max)	833 mA
Current - Output (Max)	833 mA
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	40.6 mm
Size / Dimension [x]	1.6 "
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	5000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

THM 20 Series

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Applications	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Package / Case	Number of Outputs	Voltage - Isolation	Efficiency	Features	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power THM 20-2412	36 V	18 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	1.67 A	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	1	5000 V	90 %	OCP OTP OVP SCP	12 V
Traco Power THM 20-4823	75 V	36 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole		10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	2	5000 V	88 %	OCP OTP OVP SCP	15 V	667 mA	667 mA	-15 V
Traco Power THM 20-1221	18 V	9 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	2 A	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	2	5000 V	86 %	OCP OTP OVP SCP	5 V			-5 V	2 A
Traco Power THM 20-4813WI	75 V	18 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	1.33 A	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	1	5000 V	88 %	OCP OTP OVP SCP	15 V
Traco Power THM 20-4815	75 V	36 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	833 mA	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	1	5000 V	88.5 %	OCP OTP OVP SCP	24 V
Traco Power THM 20-4812WI	75 V	18 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	1.67 A	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	1	5000 V	88 %	OCP OTP OVP SCP	12 V
Traco Power THM 20-2421WI	36 V	9 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	2 A	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	2	5000 V	86 %	OCP OTP OVP SCP	5 V			-5 V	2 A
Traco Power THM 20-4815WI	75 V	18 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	833 mA	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	1	5000 V	88.5 %	OCP OTP OVP SCP	24 V
Traco Power THM 20-2421	36 V	18 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole	2 A	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	2	5000 V	86 %	OCP OTP OVP SCP	5 V			-5 V	2 A
Traco Power THM 20-2422	36 V	18 V	-40 °C	80 ¯C	Isolated Module	Medical	Through Hole		10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	20 W	5-DIP Module	2	5000 V	90 %	OCP OTP OVP SCP	12 V	833 mA		-12 V		833 mA
