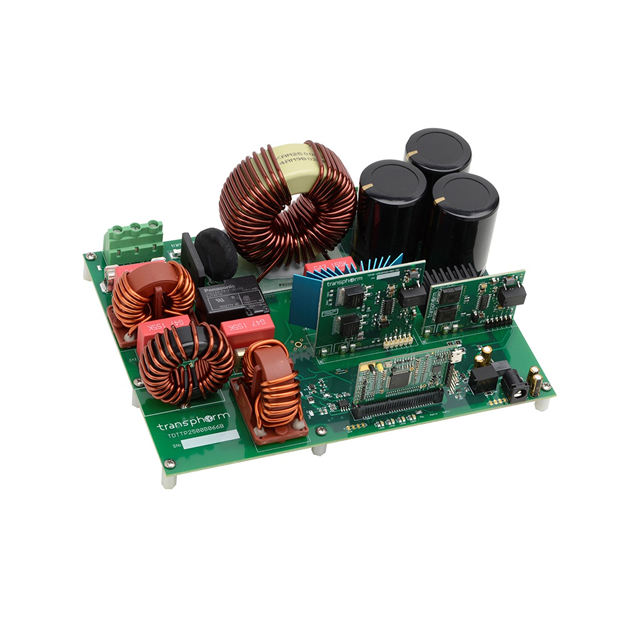

TDTTP2500B066B-KIT
ActiveTransphorm
2.5 KW BRIDGELESS TOTEM-POLE PFC
Deep-Dive with AI
Search across all available documentation for this part.
TDTTP2500B066B-KIT
ActiveTransphorm
2.5 KW BRIDGELESS TOTEM-POLE PFC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDTTP2500B066B-KIT |
|---|---|
| Board Type | Fully Populated |
| Frequency - Switching | 66 kHz |
| Main Purpose | AC/DC, PFC, Primary Side |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 2.5 kW |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TP65H050G4BS |
| Voltage - Output | 390 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1075.20 | |
Description
General part information
TDTTP2500 Series
TP65H050G4BS - AC/DC, Primary Side and PFC 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
No documents available
