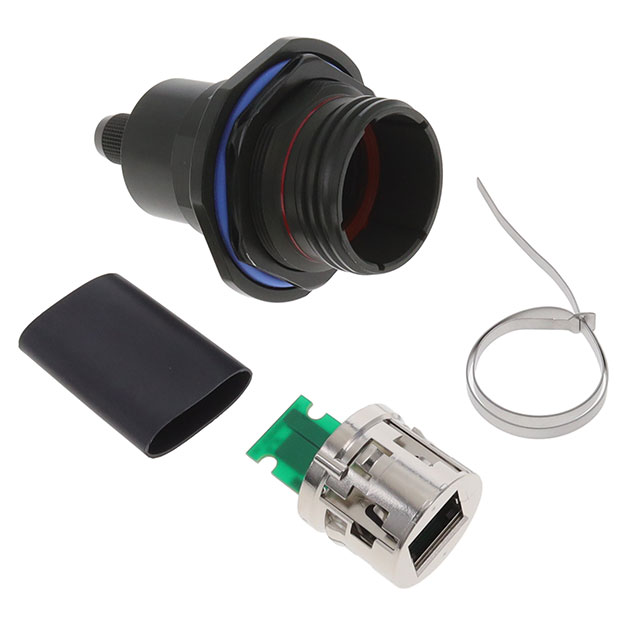

KIT38204ZC

Active

Amphenol Socapex

CONN MOD JACK 8P8C SHIELDED

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD JACK 8P8C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	KIT38204ZC

Connector Type	Jack
Features	Circular Threaded Coupling, Heat Shrink Tubing
Ingress Protection	IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

Part	Number of Rows	Tab Direction	Number of Ports	Termination	LED Color	Orientation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions/Contacts	Ingress Protection	Mounting Type	Shielding	Ratings	Cable Type	Color	Housing Material	Length [x]	Length [x]
Amphenol Socapex KIT38082NI	1	User Selectable	1	PC Board Solder	Does Not Contain LED	Straight	Circular Threaded Coupling Heat Shrink Tubing	85 °C	-40 °C	Jack	8p8c (RJ45 Ethernet)	IP68 - Dust Tight Waterproof	Panel Mount Square Flange	Shielded
Amphenol Socapex KIT38081				IDC			Circular Threaded Coupling			Plug	8p8c (RJ45 Ethernet)	IP68 - Dust Tight Waterproof		Shielded	Cat5e	Round Cable Not Specified	Olive	Aluminum	54 mm	2.126 "
Amphenol Socapex KIT38204	1	User Selectable	1	Solder	Does Not Contain LED	Straight	Circular Threaded Coupling Heat Shrink Tubing	85 °C	-40 °C	Jack	8p8c (RJ45 Ethernet)	IP68 - Dust Tight Waterproof	Bulkhead Panel Mount	Shielded	Cat5e
Amphenol Socapex KIT38204NI	1	User Selectable	1	Solder	Does Not Contain LED	Straight	Circular Threaded Coupling Heat Shrink Tubing	85 °C	-40 °C	Jack	8p8c (RJ45 Ethernet)	IP68 - Dust Tight Waterproof	Bulkhead Panel Mount	Shielded	Cat5e
Amphenol Socapex KIT38204ZC	1	User Selectable	1	Solder	Does Not Contain LED	Straight	Circular Threaded Coupling Heat Shrink Tubing	85 °C	-40 °C	Jack	8p8c (RJ45 Ethernet)	IP68 - Dust Tight Waterproof	Bulkhead Panel Mount	Shielded	Cat5e

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e
