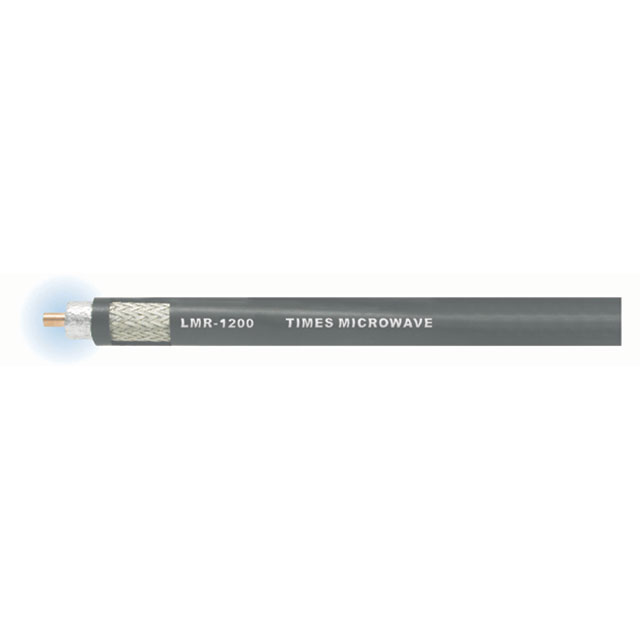

LMR-1200-FR
ActiveAmphenol Times Microwave Systems
LMR-1200 W/NON-HGN FR JKT L FOOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LMR-1200-FR
ActiveAmphenol Times Microwave Systems
LMR-1200 W/NON-HGN FR JKT L FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-1200-FR |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Dielectric Diameter [diameter] | 0.92 " |
| Dielectric Diameter [diameter] | 23.37 mm |
| Dielectric Material | Foam Polyethylene (FPE) |
| Features | Fire Retardant |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 30.48 mm |
| Jacket (Insulation) Diameter [diameter] | 1.2 in |
| Jacket (Insulation) Material | Polyethylene (PE), Riser |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Braid |
| Spool Size | 500 ' |
| Spool Size | 152.4 m |
| VoP, Velocity of Propagation | 88 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 29.85 | |
| 3 | $ 27.65 | |||
| 5 | $ 26.71 | |||
| 7 | $ 26.08 | |||
| 10 | $ 25.45 | |||
| 25 | $ 23.88 | |||
| 50 | $ 22.62 | |||
| 100 | $ 21.52 | |||
Description
General part information
LMR-120 Series
Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
