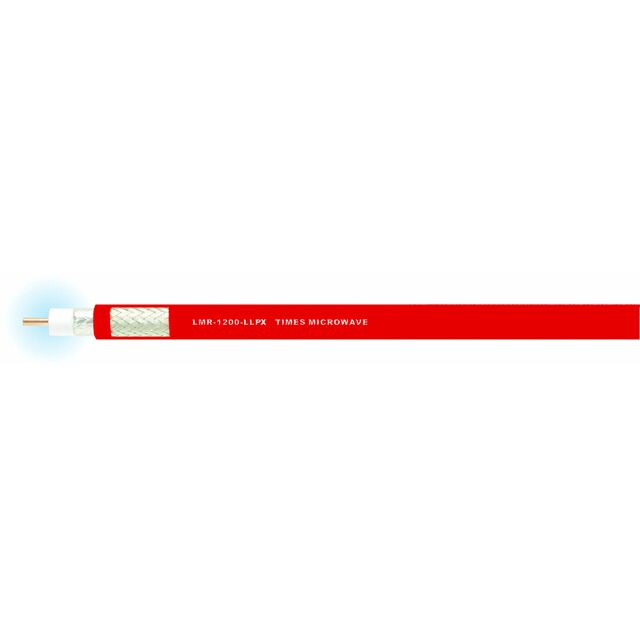

LMR-1200-LLPX

Active

Amphenol Times Microwave Systems

LMR-1200 LOW LOSS PLENUM, LISTED

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

LMR-1200 LOW LOSS PLENUM, LISTED

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-1200-LLPX

Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Dielectric Diameter [diameter]	0.92 "
Dielectric Diameter [diameter]	23.37 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	26.67 mm
Jacket (Insulation) Diameter [diameter]	1.05 in
Jacket (Insulation) Material	Fluoropolymer, Plenum
Jacket Color	Red
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	76

Part	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Features	Shield Type	VoP, Velocity of Propagation	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Material	Cable Type	Jacket Color	Impedance	Dielectric Material	Conductor Material	Spool Size	Spool Size	Length
Amphenol Times Microwave Systems LMR-1200-DB	85 °C	-40 °C	30.48 mm	1.2 in	Polyethylene (PE)	Direct Burial Watertight	Braid	88	0.92 "	23.37 mm	Aluminum Copper Tinned	Coaxial	Black	50 Ohms	Foam Polyethylene (FPE)	Copper Bare
Amphenol Times Microwave Systems LMR-1200-LLPX	125 °C	-40 °C	26.67 mm	1.05 in	Fluoropolymer Plenum		Braid	76	0.92 "	23.37 mm	Aluminum Copper Tinned	Coaxial - Plenum	Red	50 Ohms	Polytetrafluoroethylene (PTFE)	Copper Bare
Amphenol Times Microwave Systems LMR-1200-FR	85 °C	-40 °C	30.48 mm	1.2 in	Polyethylene (PE) Riser	Fire Retardant	Braid	88	0.92 "	23.37 mm	Aluminum Copper Tinned	Coaxial	Black	50 Ohms	Foam Polyethylene (FPE)	Copper Bare	500 '	152.4 m	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 47.86

General part information

Coaxial - Plenum Cable 50 Ohms
