PAT-05-HH-B-20-S-9

Active

FiberSource, Inc

LCU-LCU SM 2MM YELLOW SIMPLEX 5M

Search across all available documentation for this part.

Active

FiberSource, Inc

LCU-LCU SM 2MM YELLOW SIMPLEX 5M

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall	Length - Overall	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color - Connectors	Fiber Type	Color - Cable	Return Loss	1st Connector	Insertion Loss
FiberSource, Inc PAT-05-NN-F-20-D-A	5 m	16.4 ft	2 mm	0.08 in	LC/PPC	85 °C	-40 °C	Duplex Multimode OM3	Blue	50/125
FiberSource, Inc PAT-05-CC-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	SC/UPC	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	55 dB	SC/UPC	0.3 dB
FiberSource, Inc PAT-05-JH-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	LC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	65 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-HC-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	SC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	55 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-JD-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	SC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	65 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-HH-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	LC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	55 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-NL-F-20-D-A	5 m	16.4 ft	2 mm	0.08 in	SC Duplex	85 °C	-40 °C	Duplex Multimode OM3	Blue	50/125			LC Duplex
FiberSource, Inc PAT-05-HH-B-20-S-9	5 m	16.4 ft	2 mm	0.08 in	LC/UPC	85 °C	-40 °C	Simplex Singlemode			Yellow	55 dB 65 dB	LC/UPC	0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

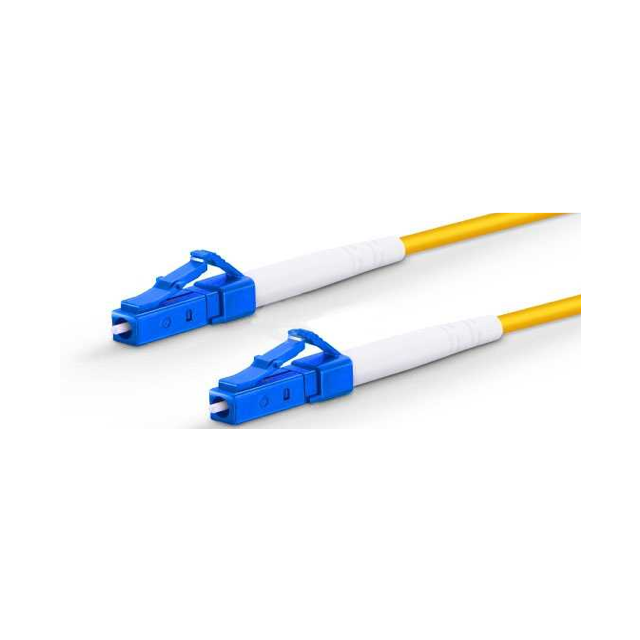

Cable Fiber Optic LC/UPC To LC/UPC 16.4' (5.0m)
