PAT-05-NL-F-20-D-A

Active

FiberSource, Inc

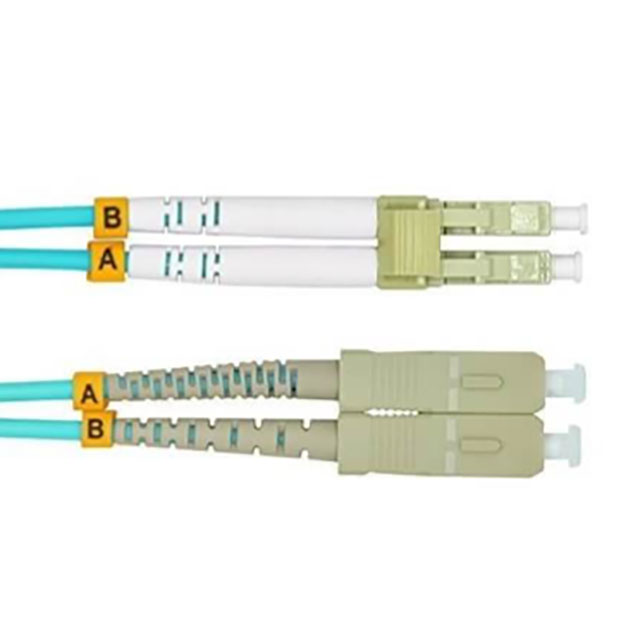

FIBER OPTIC CBL LC-SC DUPLEX 5M

Search across all available documentation for this part.

Active

FiberSource, Inc

FIBER OPTIC CBL LC-SC DUPLEX 5M

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall	Length - Overall	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color - Connectors	Fiber Type	Color - Cable	Return Loss	1st Connector	Insertion Loss
FiberSource, Inc PAT-05-NN-F-20-D-A	5 m	16.4 ft	2 mm	0.08 in	LC/PPC	85 °C	-40 °C	Duplex Multimode OM3	Blue	50/125
FiberSource, Inc PAT-05-CC-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	SC/UPC	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	55 dB	SC/UPC	0.3 dB
FiberSource, Inc PAT-05-JH-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	LC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	65 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-HC-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	SC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	55 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-JD-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	SC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	65 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-HH-B-20-D-9	5 m	16.4 ft	2 mm	0.08 in	LC Duplex	85 °C	-40 °C	Duplex Singlemode	Blue		Yellow	55 dB	LC Duplex	0.3 dB
FiberSource, Inc PAT-05-NL-F-20-D-A	5 m	16.4 ft	2 mm	0.08 in	SC Duplex	85 °C	-40 °C	Duplex Multimode OM3	Blue	50/125			LC Duplex
FiberSource, Inc PAT-05-HH-B-20-S-9	5 m	16.4 ft	2 mm	0.08 in	LC/UPC	85 °C	-40 °C	Simplex Singlemode			Yellow	55 dB 65 dB	LC/UPC	0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic LC Duplex To SC Duplex 50/125 16.4' (5.0m)

Technical documentation and resources
