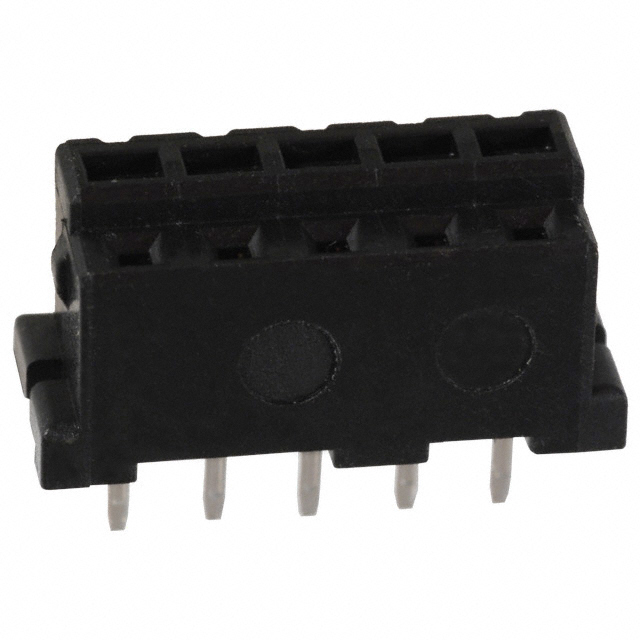

DF3-5S-2DSA(55)

LTB

Hirose Electric USA, Inc.

CONN RCPT 5POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3 Series Datasheet

DF3-5S-2DSA(55)

LTB

Hirose Electric USA, Inc.

CONN RCPT 5POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDF3 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-5S-2DSA(55)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights [z]	6.6 mm, 7.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	30 VAC

DF3-5 Series

Part	Contact Shape	Termination	Fastening Type	Number of Positions Loaded	Shrouding	Material Flammability Rating	Features	Insulation Height	Insulation Height	Current Rating (Amps)	Connector Type	Mounting Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Type	Number of Rows	Insulation Material	Contact Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Convert From (Adapter End)	Contact Length - Post	Contact Length - Post	Mated Stacking Heights [z]	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Color	Note	Contact Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish	Wire Type	Wire Gauge	Cable Termination
Hirose Electric USA, Inc. DF3-5P-2V(20)	Circular	Solder	Push-Pull	All	Shrouded - 4 Wall	UL94 V-0	Board Guide	5.9 mm	0.232 in	3 A	Header	Surface Mount	Board to Board Cable	0.079 in	2 mm	Tin	Male Pin	1	Nylon Polyamide (PA)	Brass	Beige	105 ░C	-55 °C
Hirose Electric USA, Inc. DF3-5EP-2A												Panel Mount Snap-In						1						0.079 in	2 mm	Plug Male Pins
Hirose Electric USA, Inc. DF3-5S-2DSA(50)	Square	Solder	Friction Lock	All		UL94 V-0		5.9 mm	0.232 in	3 A	Receptacle	Through Hole	Board to Board Cable	0.079 in	2 mm	Tin	Female Socket	1	Nylon Polyamide (PA)	Phosphor Bronze	Black	85 °C	-30 ░C				0.118 in	3 mm	6.6 mm 7.5 mm	Gold	30 VAC
Hirose Electric USA, Inc. DF3-5P-2DS(01)	Square	Press-Fit Solder	Push-Pull	All	Shrouded - 4 Wall	UL94 V-0		5 mm	0.197 in	3 A	Header	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm		Male Pin	1	Nylon Polyamide (PA)	Brass	Black	105 ░C	-55 °C				0.114 in	2.9 mm		Gold		0.203 Ám	8 Áin	0.122 in	3.1 mm
Hirose Electric USA, Inc. DF3-5EP-2C											Plug	Free Hanging (In-Line)					Male Pin	1	Nylon Polyamide (PA)			105 ░C	-55 °C	0.079 in	2 mm											Black	Contacts Not Included	Crimp
Hirose Electric USA, Inc. DF3-5S-2DSA(55)	Square	Solder	Friction Lock	All		UL94 V-0		5.9 mm	0.232 in	3 A	Receptacle	Through Hole	Board to Board Cable	0.079 in	2 mm	Tin	Female Socket	1	Nylon Polyamide (PA)	Phosphor Bronze	Black	85 °C	-30 ░C				0.118 in	3 mm	6.6 mm 7.5 mm	Gold	30 VAC	0.203 Ám	8 Áin						1 çm	39.4 çin
Hirose Electric USA, Inc. DF3-5S-2R28							Closed End				Receptacle	Free Hanging (In-Line)					Female Socket	1						0.079 in	2 mm											Black					Tin	Discrete	28 AWG	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.35
		40	$ 1.07
		120	$ 1.02
		520	$ 0.84
		1000	$ 0.74
		5000	$ 0.65
		10000	$ 0.62

Description

General part information

DF3-5 Series

5 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

DF3 Series Datasheet

Datasheet
