DF3-5EP-2C

Active

Hirose Electric USA, Inc.

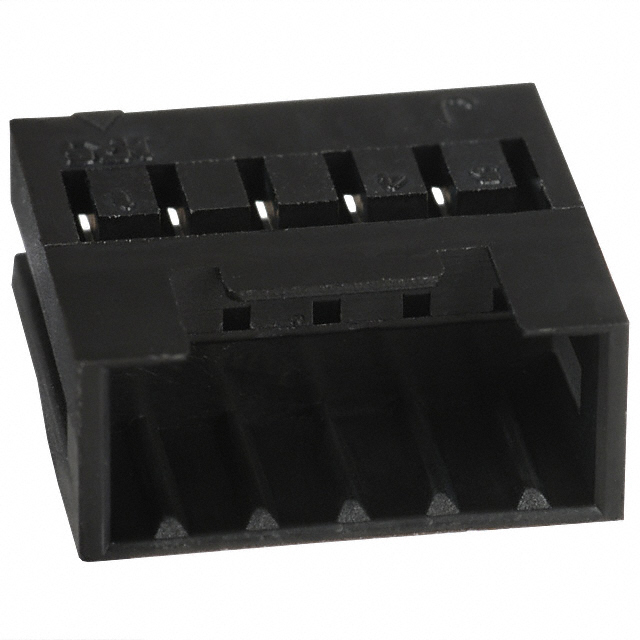

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), MALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF3-5EP-2C Spec Datasheet

DF3-5EP-2C

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), MALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, PLUG,

Deep-Dive with AI

DocumentsDF3-5EP-2C Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-5EP-2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

DF3-5 Series

Part	Contact Shape	Termination	Fastening Type	Number of Positions Loaded	Shrouding	Material Flammability Rating	Features	Insulation Height	Insulation Height	Current Rating (Amps)	Connector Type	Mounting Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Type	Number of Rows	Insulation Material	Contact Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Convert From (Adapter End)	Contact Length - Post	Contact Length - Post	Mated Stacking Heights [z]	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Color	Note	Contact Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish	Wire Type	Wire Gauge	Cable Termination
Hirose Electric USA, Inc. DF3-5P-2V(20)	Circular	Solder	Push-Pull	All	Shrouded - 4 Wall	UL94 V-0	Board Guide	5.9 mm	0.232 in	3 A	Header	Surface Mount	Board to Board Cable	0.079 in	2 mm	Tin	Male Pin	1	Nylon Polyamide (PA)	Brass	Beige	105 ░C	-55 °C
Hirose Electric USA, Inc. DF3-5EP-2A												Panel Mount Snap-In						1						0.079 in	2 mm	Plug Male Pins
Hirose Electric USA, Inc. DF3-5S-2DSA(50)	Square	Solder	Friction Lock	All		UL94 V-0		5.9 mm	0.232 in	3 A	Receptacle	Through Hole	Board to Board Cable	0.079 in	2 mm	Tin	Female Socket	1	Nylon Polyamide (PA)	Phosphor Bronze	Black	85 °C	-30 ░C				0.118 in	3 mm	6.6 mm 7.5 mm	Gold	30 VAC
Hirose Electric USA, Inc. DF3-5P-2DS(01)	Square	Press-Fit Solder	Push-Pull	All	Shrouded - 4 Wall	UL94 V-0		5 mm	0.197 in	3 A	Header	Through Hole Right Angle	Board to Board Cable	0.079 in	2 mm		Male Pin	1	Nylon Polyamide (PA)	Brass	Black	105 ░C	-55 °C				0.114 in	2.9 mm		Gold		0.203 Ám	8 Áin	0.122 in	3.1 mm
Hirose Electric USA, Inc. DF3-5EP-2C											Plug	Free Hanging (In-Line)					Male Pin	1	Nylon Polyamide (PA)			105 ░C	-55 °C	0.079 in	2 mm											Black	Contacts Not Included	Crimp
Hirose Electric USA, Inc. DF3-5S-2DSA(55)	Square	Solder	Friction Lock	All		UL94 V-0		5.9 mm	0.232 in	3 A	Receptacle	Through Hole	Board to Board Cable	0.079 in	2 mm	Tin	Female Socket	1	Nylon Polyamide (PA)	Phosphor Bronze	Black	85 °C	-30 ░C				0.118 in	3 mm	6.6 mm 7.5 mm	Gold	30 VAC	0.203 Ám	8 Áin						1 çm	39.4 çin
Hirose Electric USA, Inc. DF3-5S-2R28							Closed End				Receptacle	Free Hanging (In-Line)					Female Socket	1						0.079 in	2 mm											Black					Tin	Discrete	28 AWG	IDC
