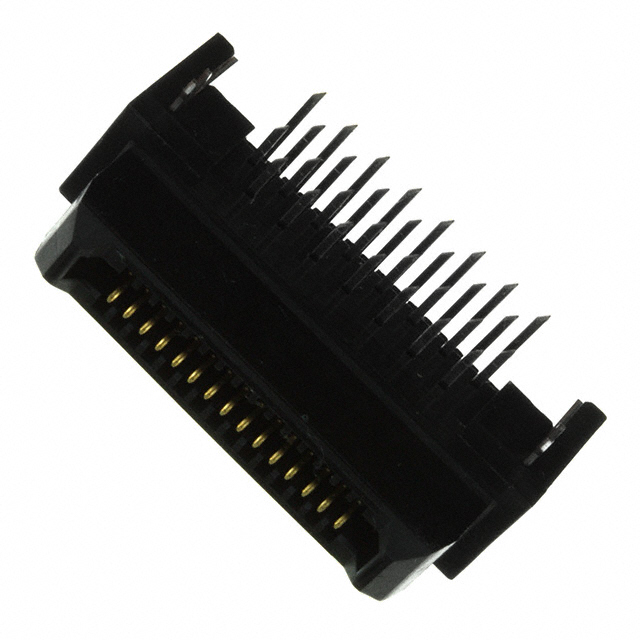

TX24-30R-LT1-H1E

Active

JAE Electronics

CONN RCPT 30POS R/A GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 30POS R/A GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-30R-LT1-H1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	9 mm
Height Above Board	0.354 in
Mounting Type	Through Hole, Right Angle
Number of Positions	30
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Contact Finish	Height Above Board	Height Above Board	Mounting Type	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights
JAE Electronics TX24-30R-LT-H1E	Gold	9 mm	0.354 in	Through Hole Right Angle	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm
JAE Electronics TX24-30R-12ST-H1E	Gold	16.3 mm	0.642 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	18 mm 20 mm 24 mm
JAE Electronics TX24-30R-6ST-N1E	Gold	10.3 mm	0.406 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	12 mm 14 mm 18 mm
JAE Electronics TX24-30R-6ST-E1E	Gold	10.3 mm	0.406 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	12 mm 14 mm 18 mm
JAE Electronics TX24-30R-10ST-H1E	Gold	14.3 mm	0.563 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	16 mm 18 mm 22 mm
JAE Electronics TX24-30R-LT1-H1E	Gold	9 mm	0.354 in	Through Hole Right Angle	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm
JAE Electronics TX24-30R-10ST-N1E	Gold	14.3 mm	0.563 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	16 mm 18 mm 22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold
