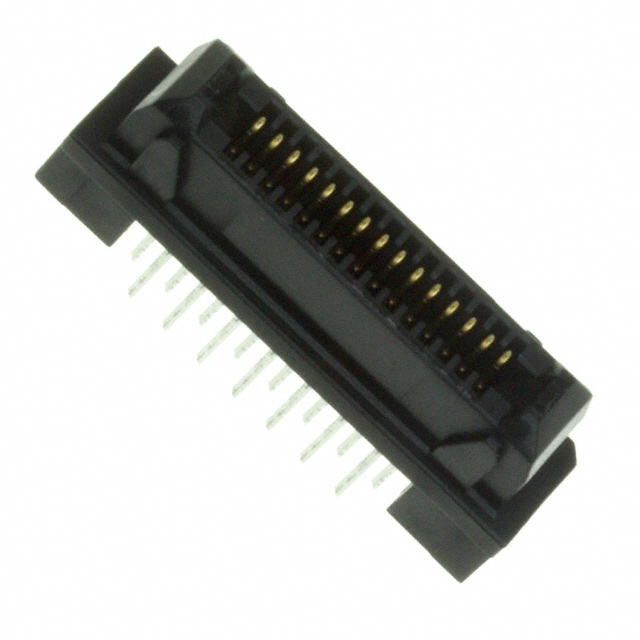

TX24-30R-10ST-H1E

Active

JAE Electronics

CONN RCPT 30POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 30POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-30R-10ST-H1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	0.563 in
Height Above Board	14.3 mm
Mated Stacking Heights	18 mm, 22 mm, 16 mm
Mounting Type	Through Hole
Number of Positions	30
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Contact Finish	Height Above Board	Height Above Board	Mounting Type	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights
JAE Electronics TX24-30R-LT-H1E	Gold	9 mm	0.354 in	Through Hole Right Angle	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm
JAE Electronics TX24-30R-12ST-H1E	Gold	16.3 mm	0.642 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	18 mm 20 mm 24 mm
JAE Electronics TX24-30R-6ST-N1E	Gold	10.3 mm	0.406 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	12 mm 14 mm 18 mm
JAE Electronics TX24-30R-6ST-E1E	Gold	10.3 mm	0.406 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	12 mm 14 mm 18 mm
JAE Electronics TX24-30R-10ST-H1E	Gold	14.3 mm	0.563 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	16 mm 18 mm 22 mm
JAE Electronics TX24-30R-LT1-H1E	Gold	9 mm	0.354 in	Through Hole Right Angle	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm
JAE Electronics TX24-30R-10ST-N1E	Gold	14.3 mm	0.563 in	Through Hole	30	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	2	0.05 in	1.27 mm	16 mm 18 mm 22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
