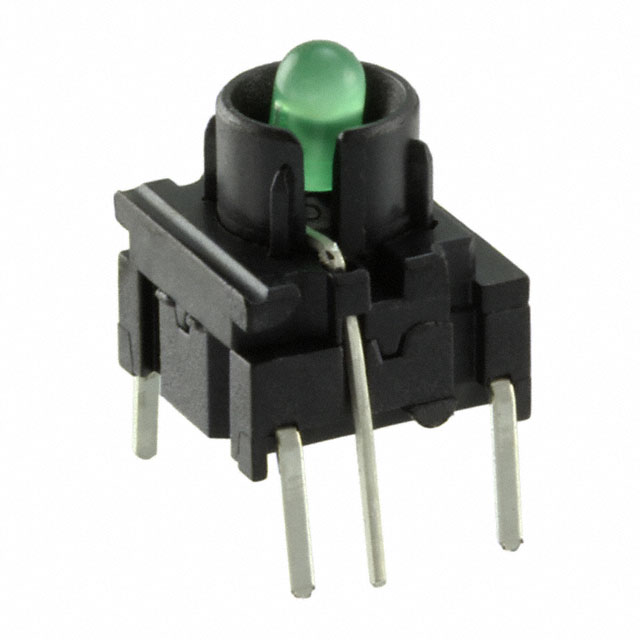

3FTH920

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsMEC Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3FTH920

Actuator Height off PCB, Vertical	10.4 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	160 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

3FTH9 Series

Part	Operating Force	Switch Travel	Illumination	Switch Function	Actuator Material	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Features	Termination Style	Actuator Height off PCB, Vertical	Ingress Protection	Mechanical Life	Mounting Type	Actuator Orientation	Outline [x]	Outline [y]	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Actuator Type
MEC Switches 3FTH940	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Yellow	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.1 VDC	Plunger for Cap
MEC Switches 3FTH924	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Green LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH945	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Yellow	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.3 VDC	Plunger for Cap
MEC Switches 3FTH987	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Red	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH98020	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Green/Red LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC 2.1 VDC	Plunger for Cap
MEC Switches 3FTH946	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Yellow	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH9RAS	300 gf	1 mm	Non-Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)		-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin		IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole Right Angle	Side Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC		Plunger for Cap
MEC Switches 3FTH980	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Red	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH900	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Blue LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.1 VDC	Plunger for Cap
MEC Switches 3FTH920	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Green LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.1 VDC	Plunger for Cap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.84
		10	$ 6.53
		25	$ 6.01
		50	$ 5.54
		100	$ 5.13
		250	$ 4.67
		300	$ 4.94
		500	$ 4.32
		1000	$ 4.01
		2500	$ 3.85

Description

General part information

3FTH9 Series

Tactile Switch SPST-NO Top Actuated Through Hole
