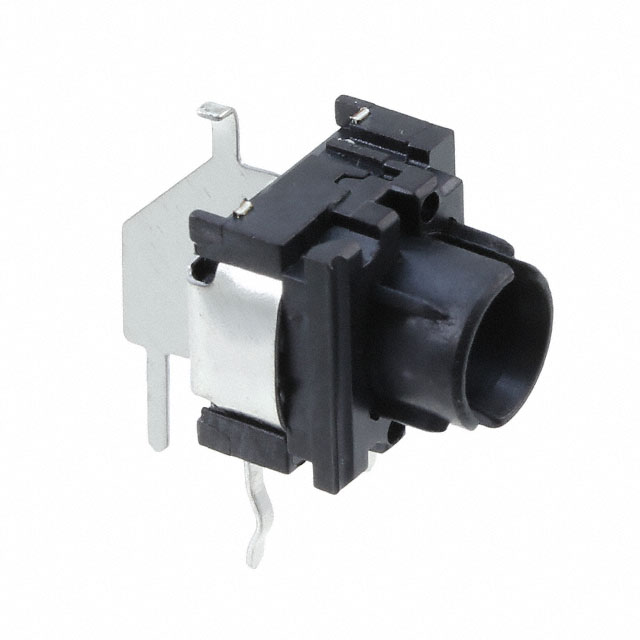

3FTH9RAS

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3FTH9RAS

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3FTH9RAS

Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Side Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	300 gf
Operating Temperature [Max]	160 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

3FTH9 Series

Part	Operating Force	Switch Travel	Illumination	Switch Function	Actuator Material	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Features	Termination Style	Actuator Height off PCB, Vertical	Ingress Protection	Mechanical Life	Mounting Type	Actuator Orientation	Outline [x]	Outline [y]	Contact Rating @ Voltage	Illumination Voltage (Nominal)	Actuator Type
MEC Switches 3FTH940	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Yellow	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.1 VDC	Plunger for Cap
MEC Switches 3FTH924	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Green LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH945	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Yellow	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.3 VDC	Plunger for Cap
MEC Switches 3FTH987	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Red	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH98020	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Green/Red LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC 2.1 VDC	Plunger for Cap
MEC Switches 3FTH946	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Yellow	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH9RAS	300 gf	1 mm	Non-Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)		-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin		IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole Right Angle	Side Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC		Plunger for Cap
MEC Switches 3FTH980	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	LED Red	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2 VDC	Plunger for Cap
MEC Switches 3FTH900	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Blue LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.1 VDC	Plunger for Cap
MEC Switches 3FTH920	300 gf	1 mm	Illuminated	Off-Mom	Polybutylene Terephthalate (PBT)	Green LED	-40 °C	160 °C	SPST-NO	Sealed - Flux Protection	PC Pin	10.4 mm	IP67 - Dust Tight Waterproof	10000000 Cycles	Through Hole	Top Actuated	10.1 mm	10.1 mm	0.05 A 24 VDC	2.1 VDC	Plunger for Cap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.60
		10	$ 3.45
		25	$ 3.15
		100	$ 2.73
		300	$ 2.64

Description

General part information

3FTH9 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
