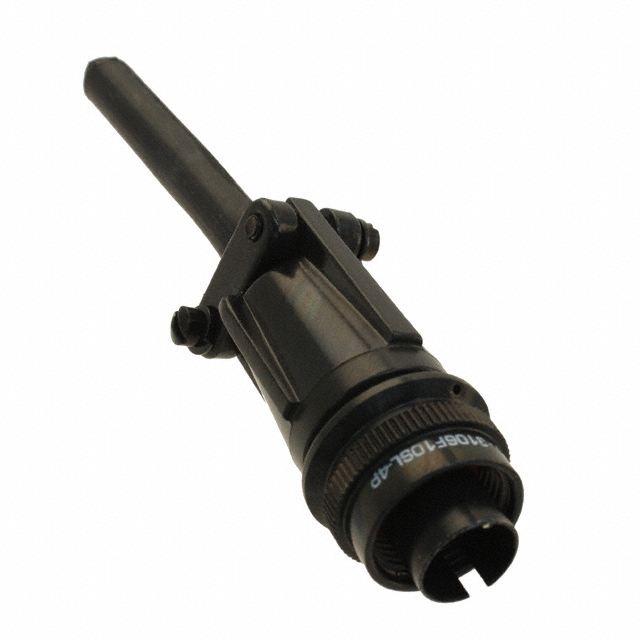

C90-3106F10SL-4P
ActiveHarwin Inc.
CONN PLUG MALE 2P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
C90-3106F10SL-4P
ActiveHarwin Inc.
CONN PLUG MALE 2P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C90-3106F10SL-4P |
|---|---|
| Applications | Industrial, Automotive |
| Backshell Material, Plating | Black Zinc Cobalt, Aluminum Alloy |
| Cable Opening [diameter] | 7.14 mm |
| Cable Opening [diameter] | 0.281 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Rubber |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black Zinc Cobalt Alloy |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-4 |
| Shielding | Unshielded |
| Voltage Rating | 700 VDC, 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 19.44 | |
| 10 | $ 16.52 | |||
| 25 | $ 15.48 | |||
| 50 | $ 14.74 | |||
| 100 | $ 14.04 | |||
| 250 | $ 13.16 | |||
| 500 | $ 12.54 | |||
Description
General part information
C90-3106F Series
2 (Power) Position Circular Connector Plug, Male Pins Solder Cup
