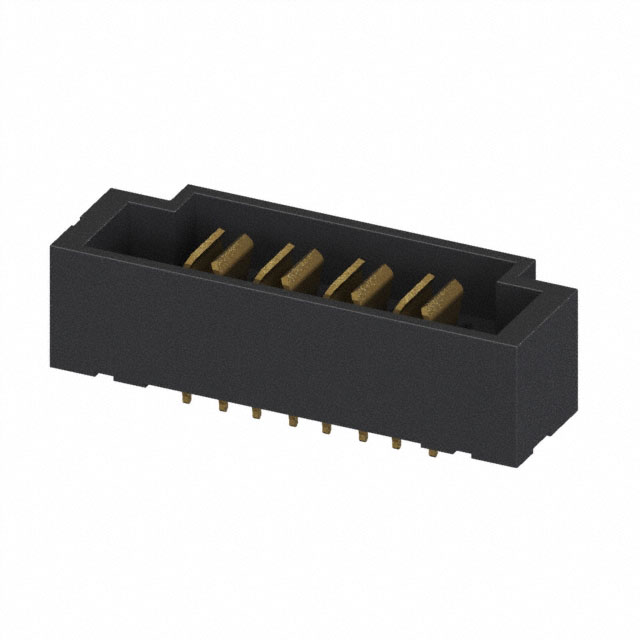

UPT-04-03.0-03-L-PV
ActiveSamtec Inc.
CONN HDR 4POS 3.81MM PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
UPT-04-03.0-03-L-PV
ActiveSamtec Inc.
CONN HDR 4POS 3.81MM PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPT-04-03.0-03-L-PV |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Termination | Solder |
| Voltage Rating | 620 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.66 | |
| 25 | $ 4.21 | |||
| 50 | $ 3.92 | |||
| 100 | $ 3.90 | |||
Description
General part information
UPT-04 Series
4 Position Header, Male Blades Connector Solder 0.150" (3.81mm) Through Hole
