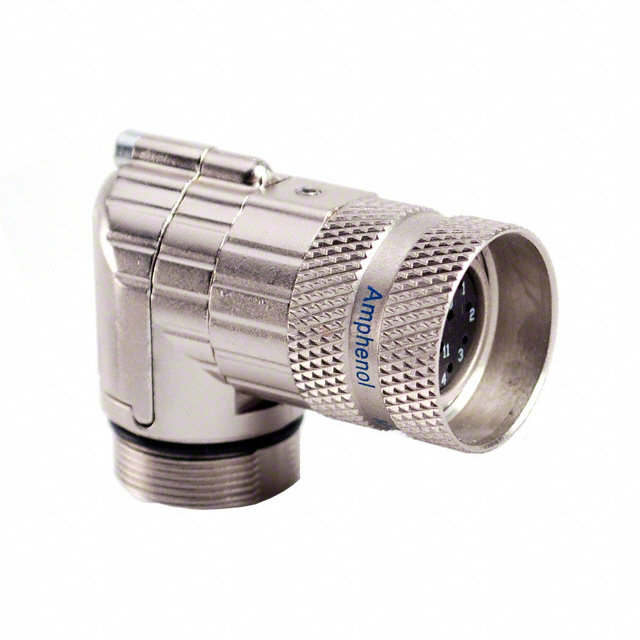

MA1EAE1200
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG F/M 12P INLN RA
Deep-Dive with AI
Search across all available documentation for this part.
MA1EAE1200
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG F/M 12P INLN RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA1EAE1200 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Type | Crimp |
| Features | Coupling Nut, Rotatable |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | E |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-12 |
| Shielding | Shielded |
| Type | For Female Sockets or Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 21.18 | |
Description
General part information
MA1EAE Series
12 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable
