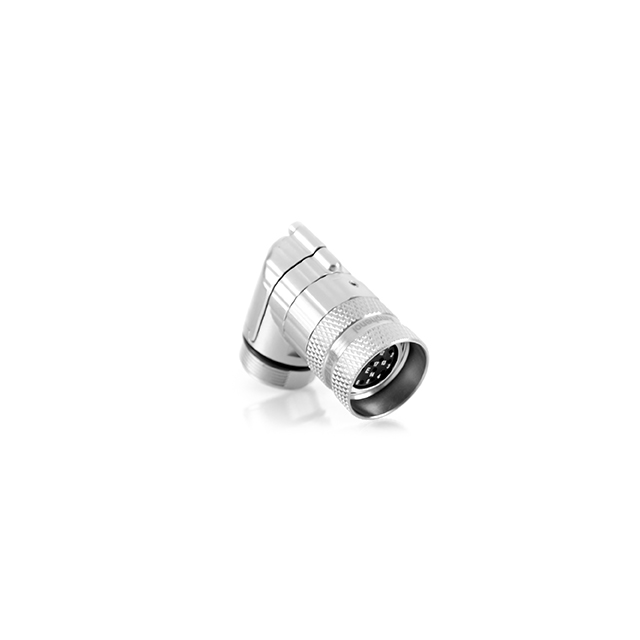

MA1EAE1900

Active

Amphenol Sine Systems Corp

90 ROTATABLE PLUG, MALE OR FEMAL

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

90 ROTATABLE PLUG, MALE OR FEMAL

Technical Specifications

Parameters and characteristics for this part

Specification	MA1EAE1900

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Features	Coupling Nut, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	E
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-19
Shielding	Shielded
Type	For Female Sockets or Male Pins

Part	Insert Material	Contact Type	Note	Housing Color	Connector Type	Shell Size - Insert	Type	Shell Material	Material Flammability Rating	Features	Shielding	Number of Positions	Contact Shape	Orientation	Contact Size	Mounting Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
Amphenol Sine Systems Corp MA1EAE1900	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	Silver	Plug Housing	M23-19	For Female Sockets or Male Pins	Zinc Die Cast	UL94 V-0	Coupling Nut Rotatable	Shielded	19	Circular	E	1 mm	Free Hanging (In-Line) Right Angle	Nickel	-20 C	130 °C	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp MA1EAE1200	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	Silver	Plug Housing	M23-12	For Female Sockets or Male Pins	Zinc Die Cast	UL94 V-0	Coupling Nut Rotatable	Shielded	12	Circular	E	1 mm	Free Hanging (In-Line) Right Angle	Nickel	-20 C	130 °C	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable
