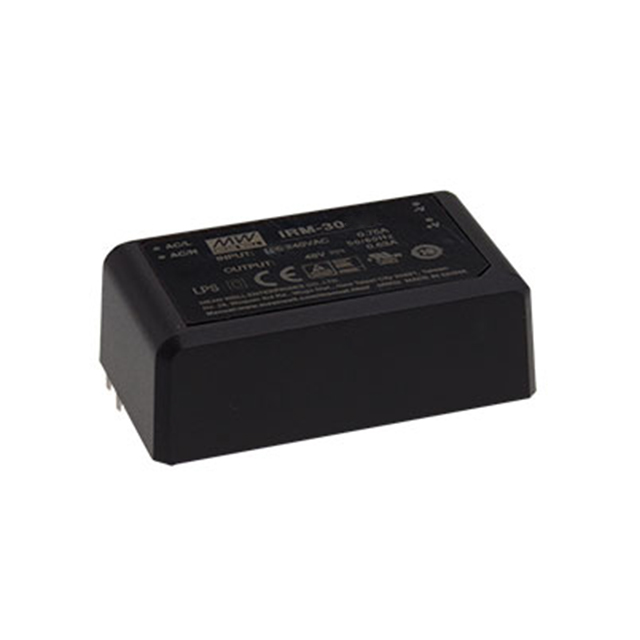

IRM-30-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IRM-30-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRM-30-12

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output (Max) [Max]	2.5 A
Efficiency	88 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	0.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Package / Case	4-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2.74 "
Size / Dimension [x]	69.5 mm
Size / Dimension [y]	39 mm
Size / Dimension [y]	1.54 "
Size / Dimension [z]	0.94 in
Size / Dimension [z]	24 mm
Type	Enclosed
Voltage - Output 1	12 V

IRM-30 Series

Part	Type	Voltage - Output 1	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Features	Approval Agency	Applications	Efficiency	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Load Regulation	Current - Output (Max) [Max]	Line Regulation
MEAN WELL USA Inc. IRM-30-24ST	Enclosed	24 V	1	3.58 in	28.5 mm	1.56 in	39.5 mm	1.12 in	91 mm	1.3 A	Chassis Mount	85 VAC	305 VAC	Universal Input	CB CE cURus TUV	ITE (Commercial)	88.5 %	31 W	3000 V	70 °C	-30 °C
MEAN WELL USA Inc. IRM-30-12ST	Enclosed	12 V	1	3.58 in	28.5 mm	1.56 in	39.5 mm	1.12 in	91 mm	2.5 A	Chassis Mount			Universal Input	CB CE cURus TUV	ITE (Commercial)	88 %	30 W	3000 V	70 °C	-30 °C
MEAN WELL USA Inc. IRM-30-15ST	Enclosed	15 V	1	3.58 in	28.5 mm	1.56 in	39.5 mm	1.12 in	91 mm	2 A	Chassis Mount			Universal Input	CB CE cURus TUV	ITE (Commercial)	88 %	30 W	3000 V	70 °C	-30 °C
MEAN WELL USA Inc. IRM-30-5	Enclosed	5 V	1	2.74 "	24 mm	1.54 "	39 mm	0.94 in	69.5 mm		Through Hole			Universal Input	CB CE cURus TUV	ITE (Commercial)	83 %	30 W		70 °C	-30 °C	4-DIP Module	1 %	6 A	0.5 %
MEAN WELL USA Inc. IRM-30-48	Enclosed	48 V	1	2.74 "	24 mm	1.54 "	39 mm	0.94 in	69.5 mm		Through Hole			Universal Input	CB CE cURus TUV	ITE (Commercial)	90 %	30 W		70 °C	-30 °C	4-DIP Module	0.5 %	630 mA	0.5 %
MEAN WELL USA Inc. IRM-30-12	Enclosed	12 V	1	2.74 "	24 mm	1.54 "	39 mm	0.94 in	69.5 mm		Through Hole			Universal Input	CB CE cURus TUV	ITE (Commercial)	88 %	30 W		70 °C	-30 °C	4-DIP Module	0.5 %	2.5 A	0.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.50
		5	$ 11.90
		10	$ 11.40
		25	$ 11.12

Description

General part information

IRM-30 Series

Enclosed AC DC Converters 1 Output 12V 2.5A 85 ~ 264 VAC Input
