SFT1443-H

Obsolete

ON Semiconductor

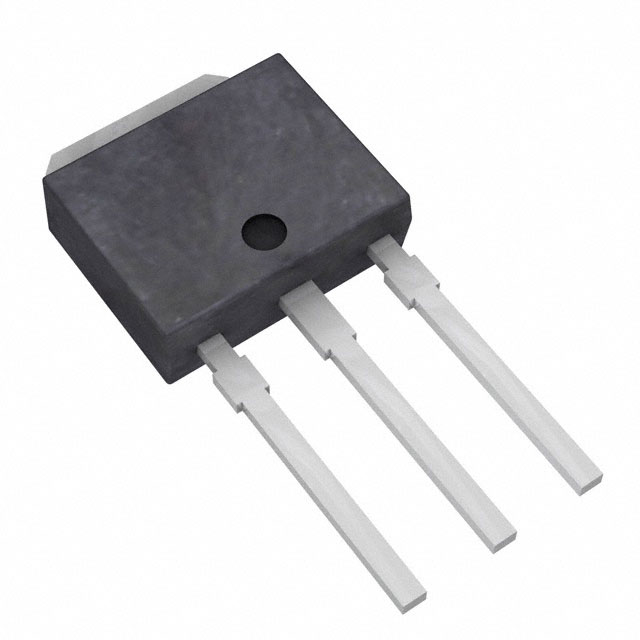

MOSFET N-CH 100V 9A TP

Search across all available documentation for this part.

Obsolete

ON Semiconductor

MOSFET N-CH 100V 9A TP

Technical Specifications

Parameters and characteristics for this part

Specification	SFT1443-H

Current - Continuous Drain (Id) @ 25°C	9 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	4 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	9.8 nC
Input Capacitance (Ciss) (Max) @ Vds	490 pF
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	IPAK, TO-251-3 Short Leads, TO-251AA
Power Dissipation (Max)	1 W, 19 W
Rds On (Max) @ Id, Vgs	225 mOhm
Supplier Device Package	IPAK/TP
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V

Part	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Power Dissipation (Max)	Mounting Type	Vgs (Max)	Supplier Device Package	Technology	Drain to Source Voltage (Vdss)	Package / Case	FET Type	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)
ON Semiconductor SFT1443-H	9 A	225 mOhm	490 pF	9.8 nC	150 °C	4 V	10 V	1 W 19 W	Through Hole	20 V	IPAK/TP	MOSFET (Metal Oxide)	100 V	IPAK TO-251-3 Short Leads TO-251AA	N-Channel
ON Semiconductor SFT1446-TL-H	20 A	51 mOhm	750 pF		150 °C	4 V	10 V	1 W 23 W	Surface Mount	20 V	TP-FA	MOSFET (Metal Oxide)	60 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	N-Channel	2.6 V	16 nC
ON Semiconductor SFT1445-H	17 A	111 mOhm	1030 pF	19 nC	150 °C	4 V	10 V	1 W 35 W	Through Hole	20 V	IPAK/TP	MOSFET (Metal Oxide)	100 V	IPAK TO-251-3 Short Leads TO-251AA	N-Channel
ON Semiconductor SFT1443-TL-H	9 A	225 mOhm	490 pF	9.8 nC	150 °C	4 V	10 V	1 W 19 W	Surface Mount	20 V	DPACK/TP-FA	MOSFET (Metal Oxide)	100 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	N-Channel	2.6 V
ON Semiconductor SFT1440-E	1.5 A	8.1 Ohm	130 pF	6.3 nC	150 °C			1 W 20 W	Through Hole	30 V	IPAK/TP	MOSFET (Metal Oxide)	600 V	IPAK TO-251-3 Short Leads TO-251AA	N-Channel			10 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 100 V 9A (Ta) 1W (Ta), 19W (Tc) Through Hole IPAK/TP
