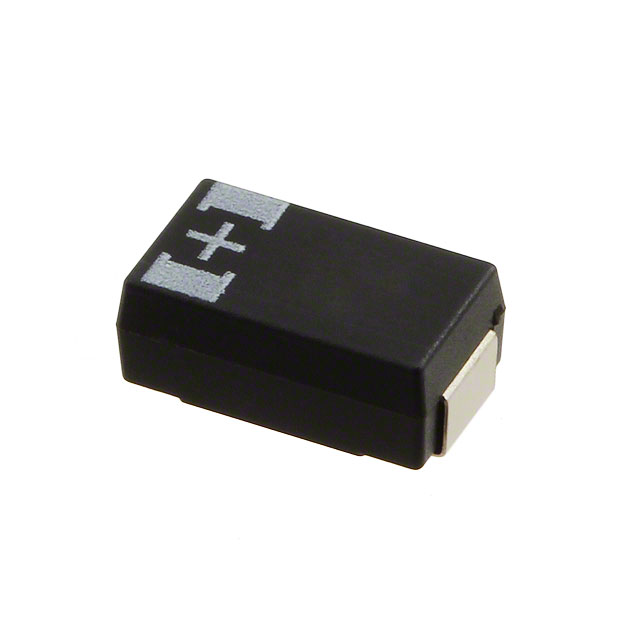

20TQC100MYF

Active

Panasonic Industrial Automation Sales

TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 20V, 20% +TOL, 20% -TOL, 100UF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

TANTALUM CAPACITOR, POLARIZED, TANTALUM (SOLID POLYMER), 20V, 20% +TOL, 20% -TOL, 100UF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	20TQC100MYF

Capacitance	100 µF
ESR (Equivalent Series Resistance)	55 mOhm
Features	General Purpose
Height - Seated (Max)	2.9 mm
Height - Seated (Max) [Max]	0.114 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D3L
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	20 V

Part	Mounting Type	Features	Voltage - Rated	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Manufacturer Size Code	Capacitance	Package / Case	Package / Case	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 20TQC22MYFB	Surface Mount	General Purpose	20 V	2000 Hrs	2 mm	0.079 in	0.11 in	2.8 mm	0.138 "	3.5 mm	Molded	B2	22 µF	1411	3528 Metric	80 mOhm	-55 °C	105 ░C	20 %
Panasonic Industrial Automation Sales 20TQC33MYFD	Surface Mount	General Purpose	20 V	2000 Hrs	2 mm	0.079 in		4.3 mm		7.3 mm	Molded	D2	33 ÁF		7343 Metric	80 mOhm	-55 °C	105 ░C	20 %	2917	0.287 "	0.169 "
Panasonic Industrial Automation Sales 20TQC22MYFD	Surface Mount	General Purpose	20 V	2000 Hrs	2 mm	0.079 in		4.3 mm		7.3 mm	Molded	D2	22 µF		7343 Metric	80 mOhm	-55 °C	105 ░C	20 %	2917	0.287 "	0.169 "
Panasonic Industrial Automation Sales 20TQC100MD2	Surface Mount	General Purpose	20 V	2000 Hrs	2 mm	0.079 in		4.3 mm		7.3 mm	Molded	D2	100 µF		7343 Metric	100 mOhm	-55 °C	105 ░C	20 %	2917	0.287 "	0.169 "
Panasonic Industrial Automation Sales 20TQC100MYF	Surface Mount	General Purpose	20 V	2000 Hrs				4.3 mm		7.3 mm	Molded	D3L	100 µF		7343 Metric	55 mOhm	-55 °C	105 ░C	20 %	2917	0.287 "	0.169 "	2.9 mm	0.114 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF Molded Tantalum Polymer Capacitor 20 V 2917 (7343 Metric) 55mOhm @ 100kHz

Technical documentation and resources
