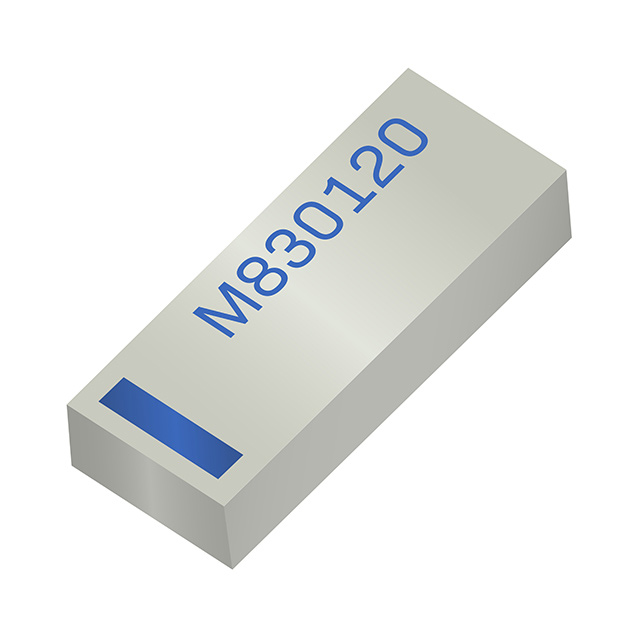

M830120-01

Active

Kyocera AVX

EVAL BOARD FOR M830120

Search across all available documentation for this part.

Active

Kyocera AVX

EVAL BOARD FOR M830120

Technical Specifications

Parameters and characteristics for this part

Specification	M830120-01

For Use With/Related Products	M830120
Frequency	1.603 GHz, 1.561 GHz, 1.575 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Antenna Type	Power - Max [Max]	Termination	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency (Center/Band)	VSWR	Number of Bands	Applications	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Gain	RF Family/Standard	Type	For Use With/Related Products	Frequency	Supplied Contents
Kyocera AVX M830120-4.5K	Chip	500 mW	Solder	2 GHz	1 GHz	UHF	1.561 GHz 1.575 GHz 1.602 GHz	1.7	1	Beidou GLONASS GPS	0.051 "	1.3 mm	Surface Mount	1.602 GHz	1.561 GHz	1.78 dBi	Navigation
Kyocera AVX M830120-01																		Antenna	M830120	1.561 GHz 1.575 GHz 1.603 GHz	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.81

General part information

- M830120 Antenna 1.561GHz, 1.575GHz, 1.603GHz Evaluation Board
