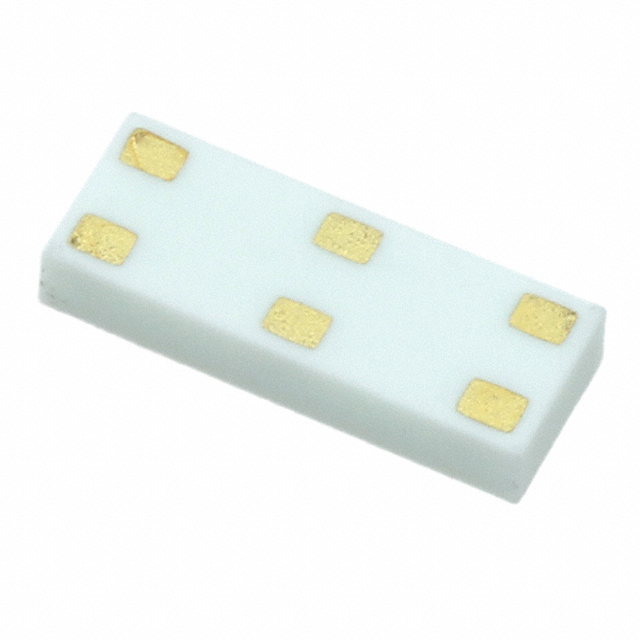

M830120-4.5K
ActiveKyocera AVX
RF ANT 1.561GHZ/1.575GHZ CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M830120-4.5K
ActiveKyocera AVX
RF ANT 1.561GHZ/1.575GHZ CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M830120-4.5K |
|---|---|
| Antenna Type | Chip |
| Applications | GLONASS, GPS, Beidou |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz, 1.561 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.602 GHz |
| Frequency Range [Min] | 1.561 GHz |
| Gain | 1.78 dBi |
| Height (Max) [Max] | 0.051 " |
| Height (Max) [Max] | 1.3 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 500 mW |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 1.7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| Digi-Reel® | 1 | $ 1.94 | ||
| Tape & Reel (TR) | 4500 | $ 0.90 | ||
| 9000 | $ 0.87 | |||
Description
General part information
M830120 Series
RF ANTENNA Beidou, GLONASS, GPS Chip Solder Surface Mount
