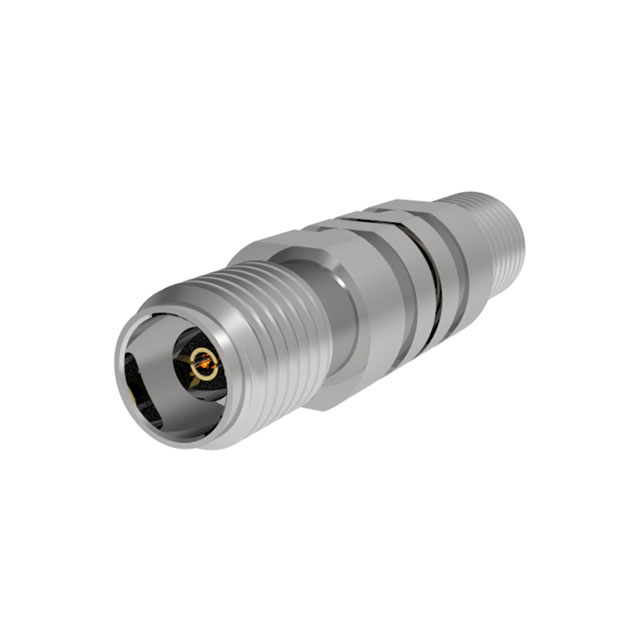

TMA-9FS-5FS-00
ActiveCarlisleIT
MW ADAPTER 2.92(F) TO 3.5(F)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMA-9FS-5FS-00
ActiveCarlisleIT
MW ADAPTER 2.92(F) TO 3.5(F)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMA-9FS-5FS-00 |
|---|---|
| Adapter Series [Max] | 3.5 mm |
| Adapter Series [Min] | 2.92 mm |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert From (Adapter End) | OS-2.9, Jack, Female Socket |
| Convert To (Adapter End) | 3.5mm Jack, Female Socket |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 54.15 | |
| 10 | $ 49.69 | |||
| 25 | $ 47.78 | |||
| 50 | $ 46.19 | |||
| 100 | $ 43.64 | |||
Description
General part information
TMA-9FS Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
