TMA-9FS-5MS-00

Active

CarlisleIT

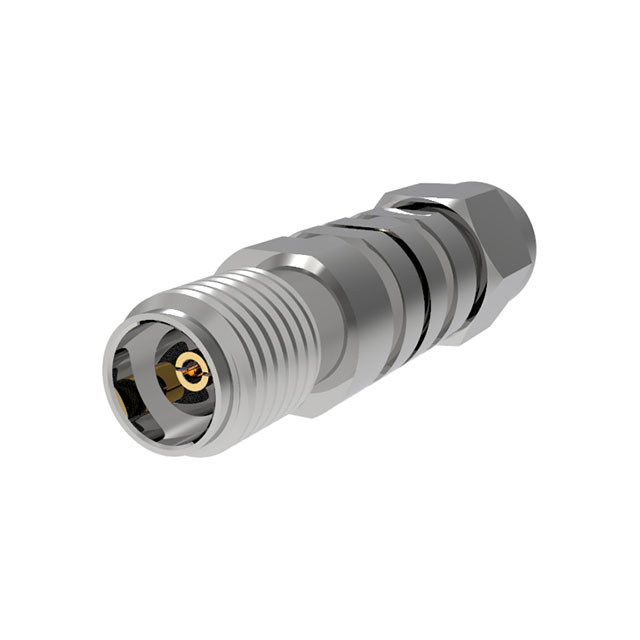

MW ADAPTER 2.92(F) TO 3.5(M)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 2.92(F) TO 3.5(M)

Technical Specifications

Parameters and characteristics for this part

Part	Adapter Type	Body Material	Convert To (Adapter End)	Convert To (Adapter End)	Style	Impedance	Conversion Type	Mounting Type	Center Gender	Adapter Series [Max]	Adapter Series [Min]	Frequency - Max [Max]	Center Contact Material	Convert From (Adapter End)	Convert From (Adapter End)
CarlisleIT TMA-9FS-9FS-00	Jack to Jack	Stainless Steel	2.92 mm	OS-2.9 Jack Female Socket	Straight	50 Ohms	Same Series	Free Hanging (In-Line)	Female to Female	2.92 mm	2.92 mm	40 GHz	Beryllium Copper	2.92 mm	Jack Female Socket OS-2.9
CarlisleIT TMA-9FS-5MS-00	Plug to Jack	Stainless Steel			Straight	50 Ohms	Between Series	Free Hanging (In-Line)		3.5 mm	2.92 mm	26.5 GHz	Beryllium Copper	2.92 mm	Jack Female Socket OS-2.9
CarlisleIT TMA-9FS-5FS-00	Jack to Jack	Stainless Steel		3.5mm Jack Female Socket	Straight	50 Ohms	Between Series	Free Hanging (In-Line)	Female to Female	3.5 mm	2.92 mm	26.5 GHz	Beryllium Copper	2.92 mm	Jack Female Socket OS-2.9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 3.5mm Plug, Male Pin 50 Ohms
