7015-0998

Active

Amphenol SV Microwave

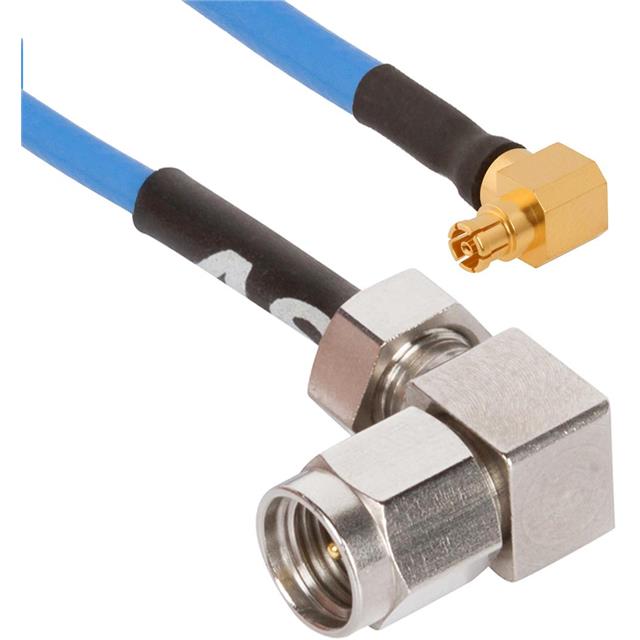

CBL ASSY SMPM-2.92MM JACK-PLG 6"

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CBL ASSY SMPM-2.92MM JACK-PLG 6"

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	1st Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	1st Connector	2nd Connector	Color	2nd Connector Mounting Type	Cable Type	Features	Style	Style	1st Connector	Style [Min]	Style [Max]
Amphenol SV Microwave 7015-0993	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	12 "	304.8 mm	26.5 GHz	Female	Male	Right Angle SMP Jack	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded	SMP to 2.92mm
Amphenol SV Microwave 7015-0994	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	26.5 GHz	Female	Male	Right Angle SMP Jack	2.92 mm	Blue	Free Hanging (In-Line)	TFlex-405	Shielded	SMP to 2.92mm
Amphenol SV Microwave 7015-0996	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	20 GHz	Female	Male	Right Angle SMPM Jack	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded	SMPM	2.92 mm
Amphenol SV Microwave 7015-0990	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	40 GHz	Male	Male	Right Angle	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded			2.92 mm	2.92 mm	2.92 mm
Amphenol SV Microwave 7015-0998	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	6 in	152.4 mm	18 GHz	Female	Male	Right Angle SMPM Jack	2.92 mm	Blue	Free Hanging (In-Line)	TFlex-405	Shielded	SMPM	2.92 mm
Amphenol SV Microwave 7015-0997	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	12 "	304.8 mm	20 GHz	Female	Male	Right Angle SMPM Jack	2.92 mm	Blue	Free Hanging (In-Line)	0.047" Flexible Cable	Shielded	SMPM	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 257.07

General part information

Cable Assembly Coaxial SMPM to 2.92mm TFlex-405 6.000" (152.40mm)

Technical documentation and resources
