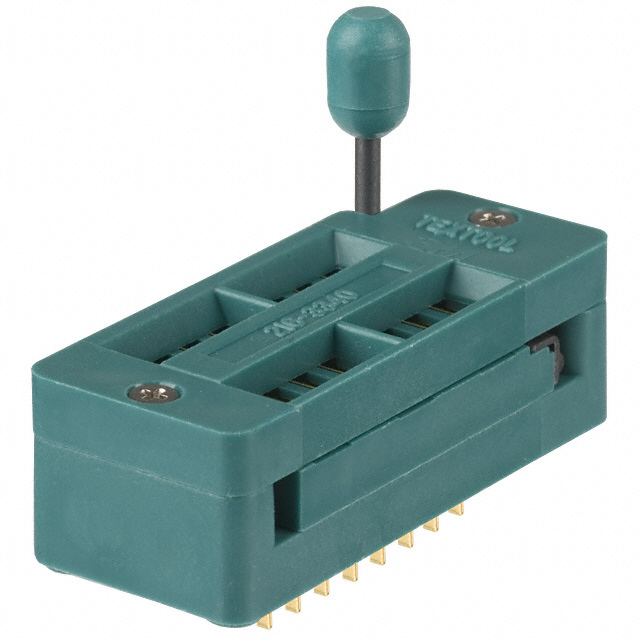

216-3340-00-0602J
Active3M (TC)
CONN IC DIP SOCKET ZIF 16POS GLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
216-3340-00-0602J
Active3M (TC)
CONN IC DIP SOCKET ZIF 16POS GLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 216-3340-00-0602J |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polysulfone (PSU), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Connector |
| Number of Positions or Pins (Grid) | 16 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Press-Fit |
| Termination Post Length | 0.11 in |
| Termination Post Length | 2.78 mm |
| Type | 7.62 mm |
| Type | 0.3 in |
| Type | DIP, ZIF (ZIP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 24.62 | |
| 10 | $ 21.56 | |||
| 30 | $ 20.63 | |||
| 50 | $ 19.96 | |||
| 100 | $ 19.30 | |||
| 250 | $ 18.23 | |||
| 500 | $ 17.70 | |||
Description
General part information
216 Series
16 (2 x 8) Pos DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing Socket Gold Connector
