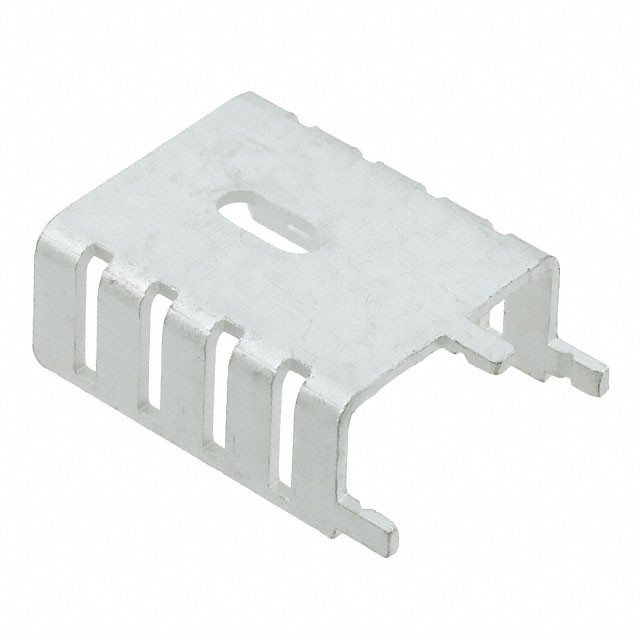

6030D(COPPER)G

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Technical Specifications

Parameters and characteristics for this part

Specification	6030D(COPPER)G

Attachment Method	PC Pin, Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	29.97 mm
Length	1.18 in
Material	Copper
Material Finish	Tin
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	1 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	300 LFM, 6 °C/W
Thermal Resistance @ Natural	12.5 °C/W
Type	Board Level, Vertical
Width	25.4 mm
Width [x]	1 in

Part	Material	Fin Height [z]	Fin Height [z]	Width	Width [x]	Type	Package Cooled	Length	Length	Shape	Material Finish	Thermal Resistance @ Natural	Attachment Method	Thermal Resistance @ Forced Air Flow	Power Dissipation @ Temperature Rise
Boyd Laconia, LLC 6030D(COPPER)G	Copper	12.7 mm	0.5 in	25.4 mm	1 in	Board Level Vertical	TO-220	29.97 mm	1.18 in	Rectangular Fins	Tin	12.5 °C/W	Bolt On PC Pin	6 °C/W 300 LFM	1 W
