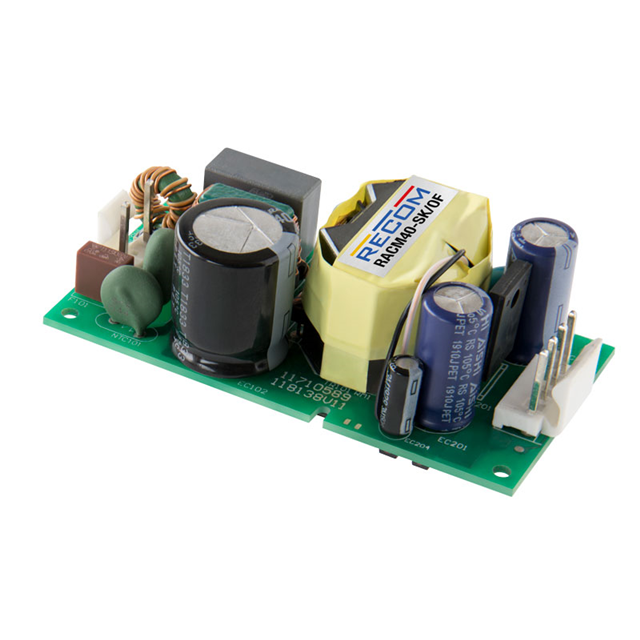

RACM40-24SK/OF-CTN

Active

RECOM Power

AC/DC CONVERTER 24V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RACM40-24SK/OF-CTN

Active

RECOM Power

AC/DC CONVERTER 24V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RACM40-24SK/OF-CTN

Applications	Medical
Approval Agency	CSA, cURus, CE
Efficiency	90 %
Features	Universal Input, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	78.3 mm
Size / Dimension [x]	3.08 "
Size / Dimension [y]	1.6 "
Size / Dimension [y]	40.6 mm
Size / Dimension [z]	25.5 mm
Size / Dimension [z]	1 "
Standard Number	60601-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

RACM40-24 Series

Switching Power Supplies 40W 80-264Vin 24Vout 1.667A

Part	Number of Outputs	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Features	Voltage - Output 1	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Type	Line Regulation	Load Regulation	Current - Output (Max) [Max]	Package / Case
RECOM Power RACM40-24SK/OF	1	4000 V	1.6 "	78.3 mm	40.6 mm	25.5 mm	3.08 "	1 "	Medical	Standby Output Universal Input	24 V	CE CSA cURus	264 VAC 370 VDC	80 VAC 120 VDC	Chassis Mount	40 W	90 %	85 °C	-40 °C	60601-1	Open Frame
RECOM Power RACM40-24SK/OF/PCB-T	1		1.6 "	78.3 mm	40.6 mm	28.9 mm	3.08 "	1.14 "	Medical	Standby Output Universal Input	24 V	CE CSA cURus	264 VAC 370 VDC	80 VAC 120 VDC	Through Hole	40 W	90 %	85 °C	-40 °C		Open Frame	0.05 %	0.5 %	1.667 A	7-DIP Module 6 Leads
RECOM Power RACM40-24SK/OF/2X3	1	4000 V	53 mm	3.08 in	2.09 in	25.4 mm	78.3 mm	25.5 mm	Medical	Standby Output Universal Input	24 V	CE CSA cURus	264 VAC 370 VDC	80 VAC 120 VDC	Chassis Mount	40 W	90 %	85 °C	-40 °C	60601-1	Open Frame
RECOM Power RACM40-24SK-T	1		1.83 in	83.2 mm	46.4 mm	30.4 mm	3.28 in	1.2 "	Medical	Baseplate Standby Output Universal Input	24 V	CE CSA cURus EAC	264 VAC 370 VDC	80 VAC 120 VDC	Through Hole	40 W	90 %	85 °C	-40 °C		Enclosed	0.05 %	0.5 %	1.667 A	6-DIP Module
RECOM Power RACM40-24SK/OF-CTN	1	4000 V	1.6 "	78.3 mm	40.6 mm	25.5 mm	3.08 "	1 "	Medical	Standby Output Universal Input	24 V	CE CSA cURus	264 VAC 370 VDC	80 VAC 120 VDC	Chassis Mount	40 W	90 %	85 °C	-40 °C	60601-1	Open Frame
RECOM Power RACM40-18SK/OF/PCB-T	1		1.6 "	78.3 mm	40.6 mm	28.9 mm	3.08 "	1.14 "	Medical	Standby Output Universal Input	18 V	CE CSA cURus	264 VAC 370 VDC	80 VAC 120 VDC	Through Hole	40 W	90 %	85 °C	-40 °C		Open Frame	0.05 %	0.7 %	2.222 A	7-DIP Module 6 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1024	$ 16.56

Description

General part information

RACM40-24 Series

Switching Power Supplies 40W 80-264Vin 24Vout 1.667A

Documents

Technical documentation and resources
