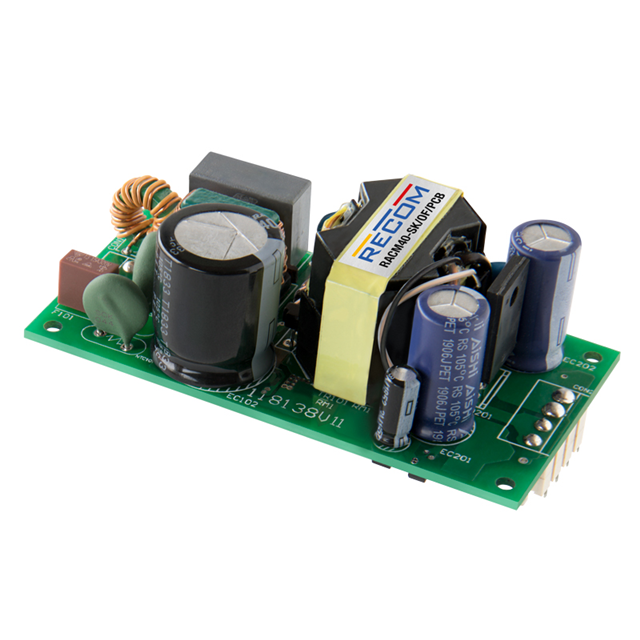

RACM40-18SK/OF/PCB-T

Active

RECOM Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC, FIXED

Search across all available documentation for this part.

Active

RECOM Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC, FIXED

Technical Specifications

Parameters and characteristics for this part

Specification	RACM40-18SK/OF/PCB-T

Applications	Medical
Approval Agency	cURus, CSA, CE
Current - Output (Max) [Max]	2.222 A
Efficiency	90 %
Features	Universal Input, Standby Output
Line Regulation	0.05 %
Load Regulation	0.7 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module, 6 Leads
Power (Watts)	40 W
Size / Dimension [x]	3.08 "
Size / Dimension [x]	78.3 mm
Size / Dimension [y]	40.6 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	1.14 "
Size / Dimension [z]	28.9 mm
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 120 VDC
Voltage - Output 1	18 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Line Regulation	Voltage - Output 1	Power (Watts)	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Approval Agency	Efficiency	Current - Output (Max) [Max]	Package / Case	Standard Number	Voltage - Isolation	Current - Output 1	Load Regulation
RECOM Power RACM40-18SK-T	3.28 in	1.83 in	83.2 mm	30.4 mm	46.4 mm	1.2 "	Enclosed	264 VAC 370 VDC	80 VAC 120 VDC	0.05 %	18 V	40 W	Baseplate Standby Output Universal Input	1	85 °C	-40 °C	Medical	Through Hole	CE CSA cURus EAC	90 %	2.222 A	6-DIP Module
RECOM Power RACM40-18SK/OF-CTN	3.08 "	1.6 "	78.3 mm	25.5 mm	40.6 mm	1 "	Open Frame	264 VAC 370 VDC	80 VAC 120 VDC		18 V	40 W	Standby Output Universal Input	1	85 °C	-40 °C	Medical	Chassis Mount	CE CSA cURus	90 %			60601-1	4000 V	2.222 A
RECOM Power RACM40-18SK/OF/PCB-T	3.08 "	1.6 "	78.3 mm	28.9 mm	40.6 mm	1.14 "	Open Frame	264 VAC 370 VDC	80 VAC 120 VDC	0.05 %	18 V	40 W	Standby Output Universal Input	1	85 °C	-40 °C	Medical	Through Hole	CE CSA cURus	90 %	2.222 A	7-DIP Module 6 Leads				0.7 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 18V 2.222A 80 ~ 264 VAC, 120 ~ 370 VDC Input
