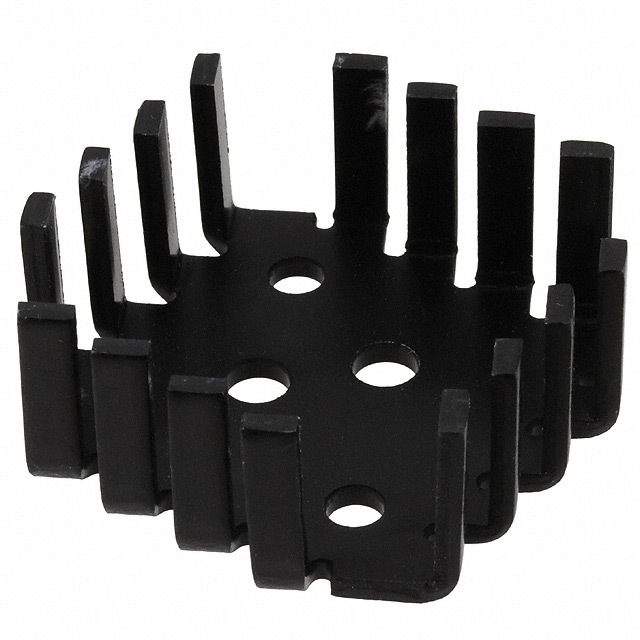

576203B00000G

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Technical Specifications

Parameters and characteristics for this part

Specification	576203B00000G

Attachment Method	Bolt On
Fin Height [z]	0.75 in
Fin Height [z]	19.05 mm
Length	1.81 "
Length	45.97 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-3
Power Dissipation @ Temperature Rise	30 °C, 4 W
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	2.5 °C/W, 400 LFM
Thermal Resistance @ Natural	6.2 °C/W
Type	Board Level
Width [x]	45.97 mm
Width [x]	1.81 in

Part	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Material Finish	Type	Attachment Method	Fin Height [z]	Fin Height [z]	Package Cooled	Power Dissipation @ Temperature Rise	Width [x]	Width [x]	Material	Shape	Length	Length
Boyd Laconia, LLC 576203B00000G	6.2 °C/W	2.5 °C/W 400 LFM	Black Anodized	Board Level	Bolt On	0.75 in	19.05 mm	TO-3	4 W 30 °C	45.97 mm	1.81 in	Aluminum	Pin Fins Square	1.81 "	45.97 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2500	$ 2.61
