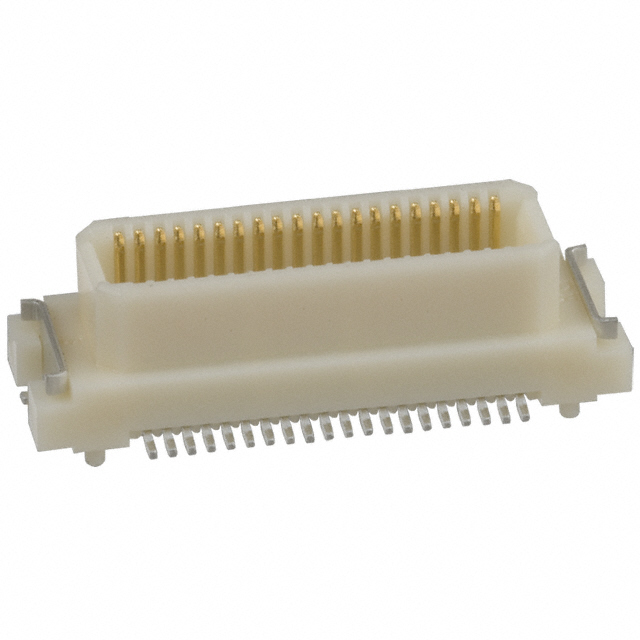

DF17(2.0)-40DP-0.5V(57)

Active

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF17(2.0)-40DP-0.5V(57)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	5 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Mounting Type	Connector Type	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF17(2.0)-50DP-0.5V(51)	2	0.169 in	4.3 mm	0.5 mm	0.02 in	5 mm 6 mm	Gold	Surface Mount	Header Outer Shroud Contacts	Board Guide Solder Retention	50
Hirose Electric USA, Inc. DF17(2.0)-80DP-0.5V(51)	2	0.169 in	4.3 mm	0.5 mm	0.02 in	5 mm 6 mm	Gold	Surface Mount	Header Outer Shroud Contacts	Board Guide Solder Retention	80
Hirose Electric USA, Inc. DF17(2.0)-50DP-0.5V(57)	2	0.169 in	4.3 mm	0.5 mm	0.02 in	5 mm 6 mm	Gold	Surface Mount	Header Outer Shroud Contacts	Board Guide Solder Retention	50
Hirose Electric USA, Inc. DF17(2.0)-40DP-0.5V(57)	2	0.169 in	4.3 mm	0.5 mm	0.02 in	5 mm 6 mm	Gold	Surface Mount	Header Outer Shroud Contacts	Board Guide Solder Retention	40
Hirose Electric USA, Inc. DF17(2.0)-70DP-0.5V(57)	2	0.169 in	4.3 mm	0.5 mm	0.02 in	5 mm 6 mm	Gold	Surface Mount	Header Outer Shroud Contacts	Board Guide Solder Retention	70
Hirose Electric USA, Inc. DF17(2.0)-20DP-0.5V(58)	2	0.169 in	4.3 mm	0.5 mm	0.02 in	5 mm 6 mm	Gold	Surface Mount	Header Center Strip Contacts	Board Guide Solder Retention	20	3.94 µin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
